GATE G5 Smart Brushless Motor
GATE G5 Smart Brushless Motor
Compatibility
Compatibility
GATE G5 Smart Brushless Motor is compatible with all standard V2 gearboxes
ETUs - smart functions
- TITAN II Bluetooth
- ASTER II Bluetooth
ETUs - standard use
- ASTER SE for V2
- ASTER SX for V2
- TITAN V2 (1st generation)
- other brand V2 ETUs
Free express shipping
Free express shipping
Free express shipping via courier on all orders over 250 EUR
Shipping & Returns
Shipping & Returns
Destination | Express shipping via Fedex/UPS | Polish National Postal Service |
Europe | 2-7 business days | 1-2 weeks |
Asia | 2-5 business days | not available |
US/Canada | 2-3 business days | not available |
Australia | 3-4 business days | not available |
*Please note that the above delivery times may be extended due to custom duty procedure.
1. The Goods purchased in the Online Store are delivered worldwide, subject to territorial restrictions under applicable laws.
2. The Goods are delivered via specialised courier companies or Poczta Polska (the Polish national postal operator). In some cases, the Goods may be personally collected from the Seller’s registered office, and in the case of the Goods that represent digital content – they may be downloaded on an appropriate device.
3. The Goods are shipped within 1 to 3 (one to three) business days from payment booking. In some cases, the Goods can be shipped at a later date. This applies also to the Goods sold in advance (pre-sale). In such a case, the Seller shall inform the Client about a shipment date. An approximate shipment delivery date depends on a delivery method selected and a destination country, and is specified at order placement. When selecting a transfer payment option, the delivery time indicated on the Website shall be increased by time needed to credit the Client’s entire payment to the Seller’s bank account, usually 1-2 (one to two) business days. Further, in the case of countries outside the European Union, due to distance and potential customs controls the delivery time may be prolonged up to 5 weeks.
4. Detailed delivery method information is available in the Online Store in a Cart section of the given Product.
5. The Goods are shipped to an address specified in an order form or provided by phone or by e-mail. The Seller shall promptly inform the Client about the fact that an order form has been filled in incorrectly if this prevents or delays the conclusion of the Sales Agreement or the delivery of the Goods.
6. Prior to the acceptance of shipment from a postal or a courier service, packaging should be checked for any potential damage inflicted in transport. In particular, the condition of tapes or seals placed on the shipment shall be verified. If shipment package shows any signs of damage or if the seals (tapes) are removed, the shipment shall not be accepted, a damage report shall be prepared in the presence of a courier and the Seller shall be contacted as soon as possible in order to clarify the issue. If discrepancies in terms of shipment quantity or quality are not detected at the acceptance, this might adversely affect the resolution of the Client’s claims filed due to shipment damage or theft in transport.
7. In the case of the Goods that represent the firmware upgrade of devices distributed by the Seller (digital content), the Client, upon the placement of the Order, conclusion of the Sales Agreement and payment, shall connect to a GATE CONTROL STATION desktop application via a USB-Link or Blu-Link device and install the upgrade purchased.
-
-

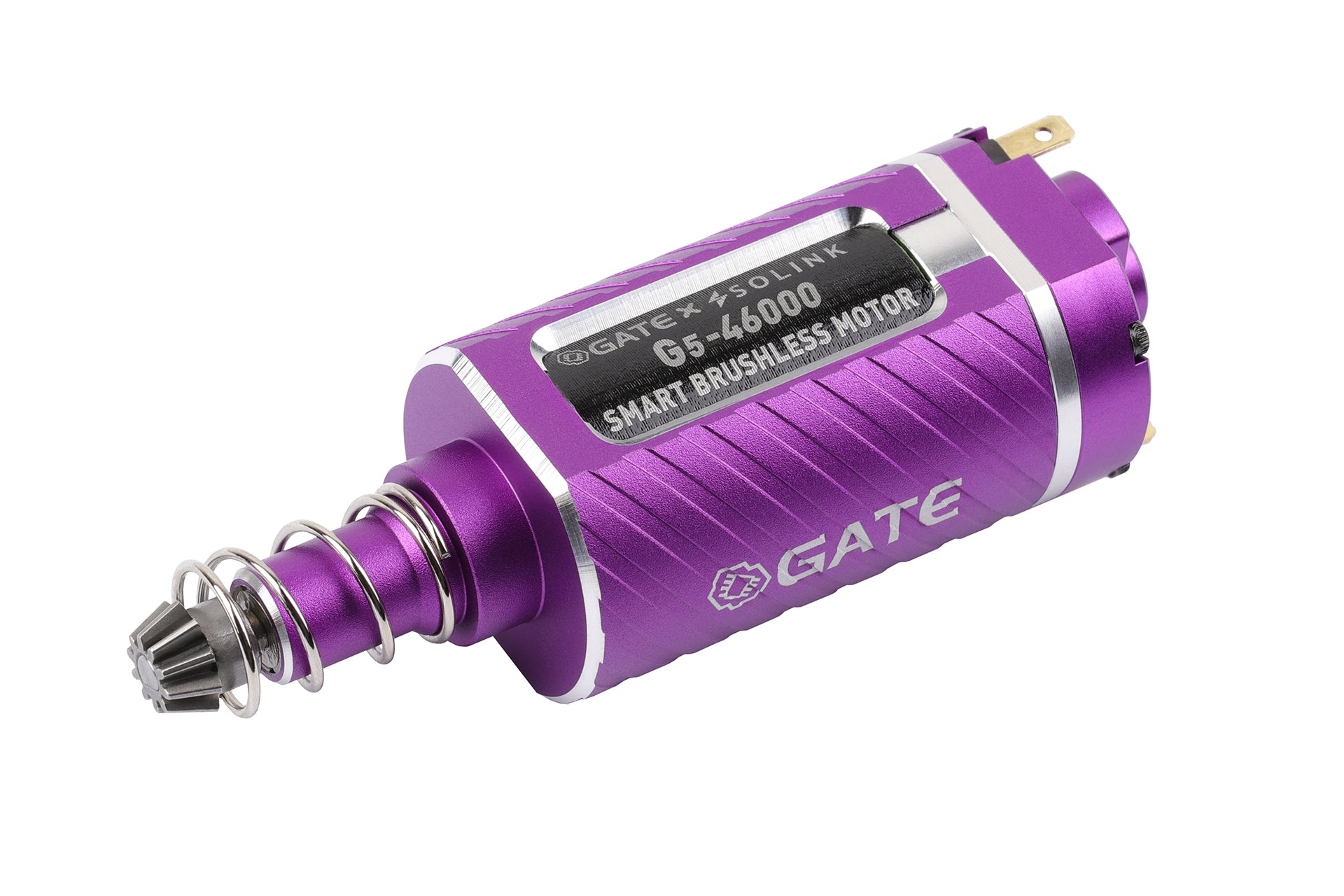

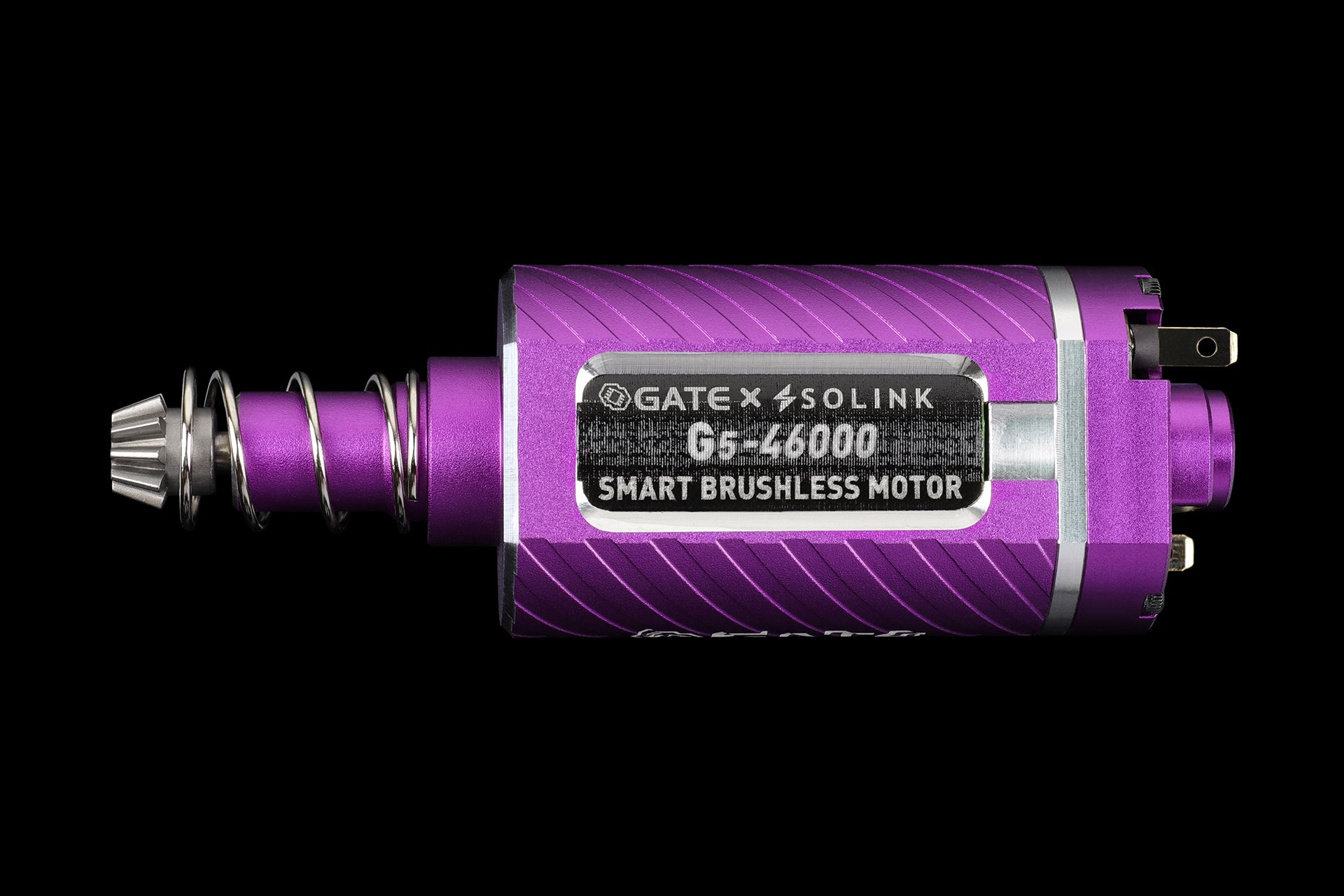

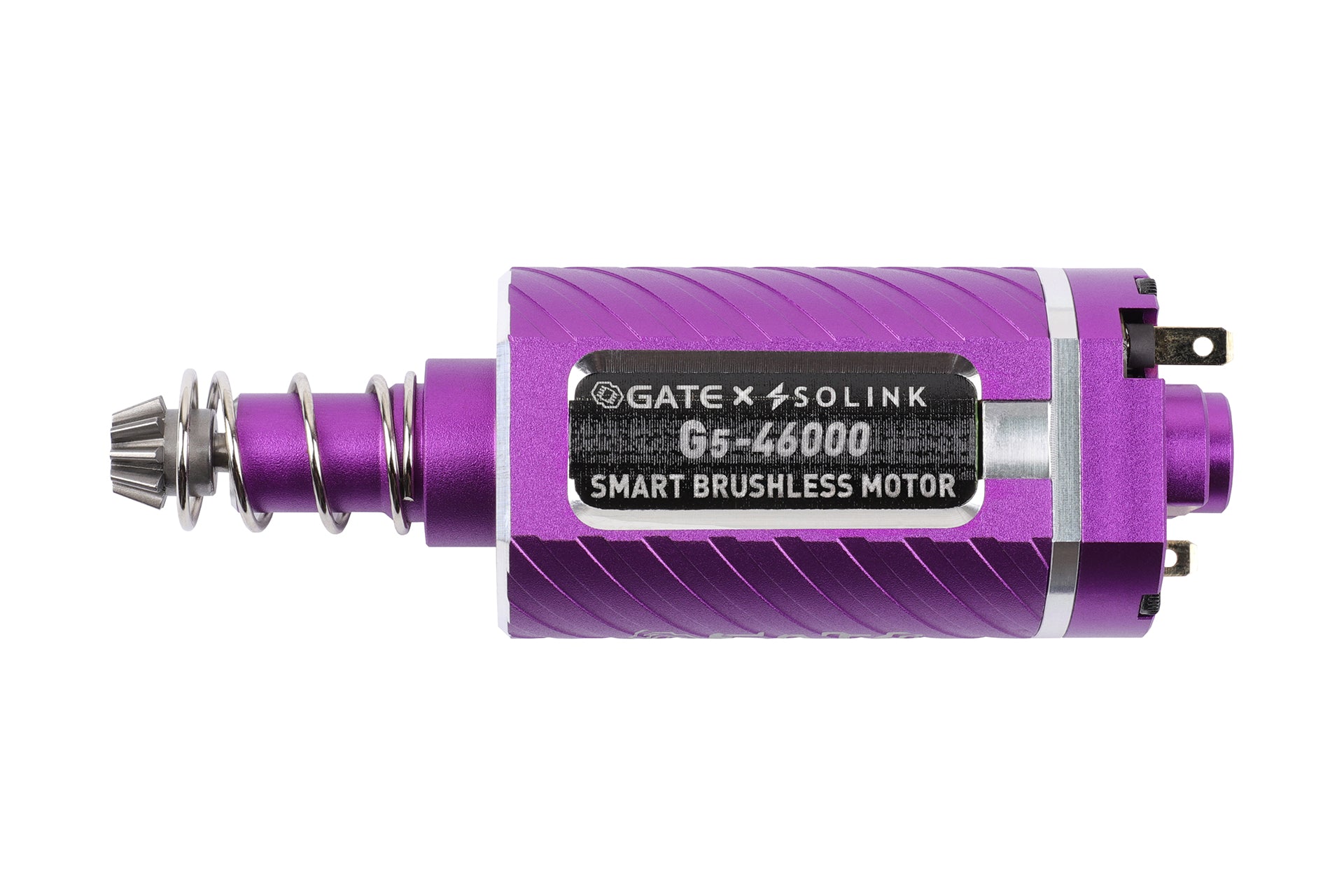

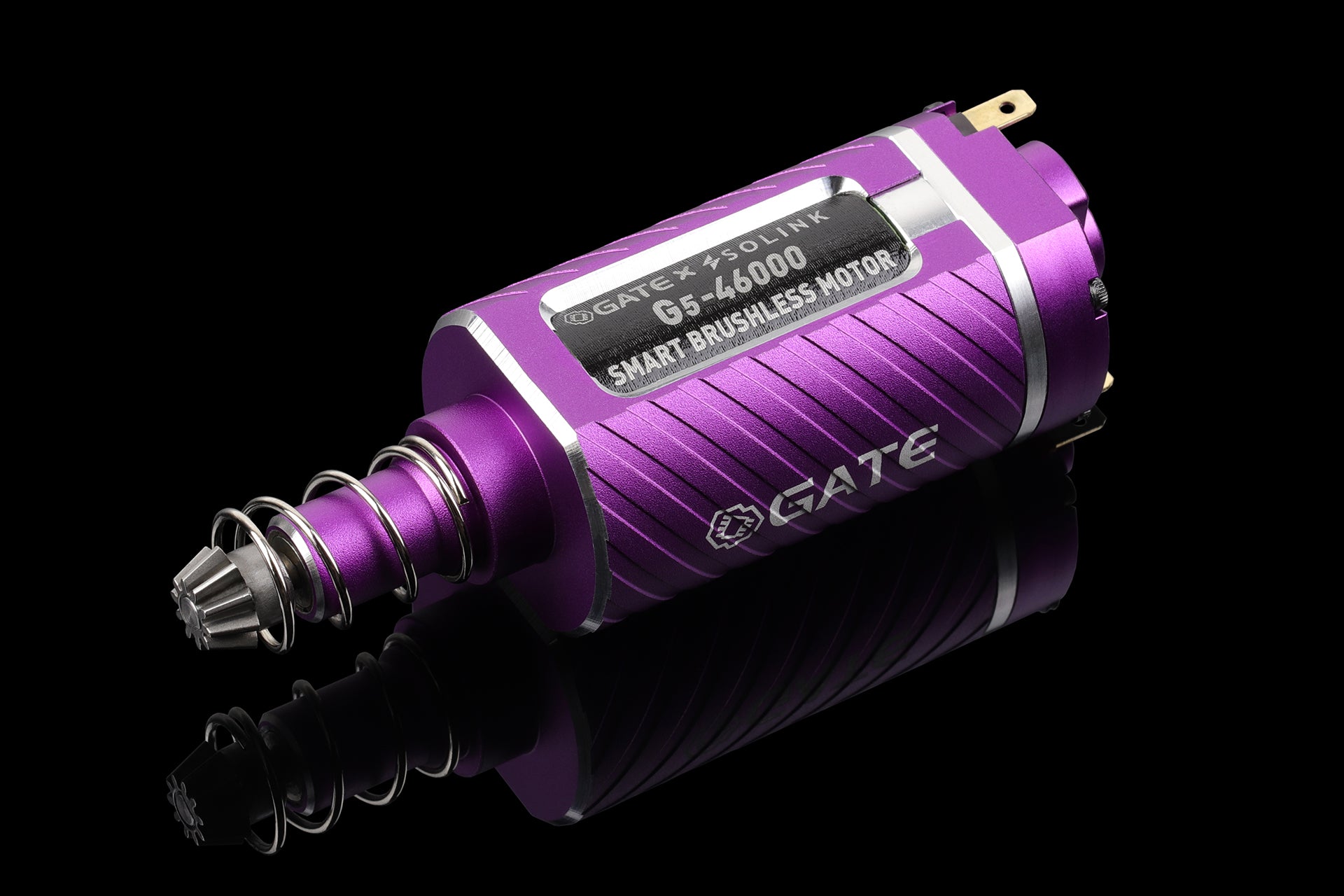

Revolutionary G5 Smart Brushless Motor – the world’s first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®! Thanks to GCS app you get precise adjustment of speed ranging from 10k to 46k RPM.
Torque adjustment gives you the ability to adjust torque to your gearbox configuration. Soft Start extends the life of the gearbox’s internal parts, including the gears, meanwhile, Fast Start gives you the quickest possible trigger reaction.You can change settings even during gameplay, without an additional programmer. What's also unique is that the motor has a built-in anti-reversal mechanism, significantly improving the gearbox's performance. Say goodbye to the problematic standard anti-reversal latches and enjoy quieter operation and even more accurate pre-cocking adjustments. The motor's extremely fast startup ensures an instantaneous trigger response, while its high efficiency reduces battery consumption and motor temperature. High torque enables compatibility with the most demanding replica configurations, and the adjustable rotational speed ensures perfect adaptation to almost any gearbox configuration.
The G5 Smart Brushless Motor is an excellent addition to the GATE ecosystem. It communicates seamlessly with the ASTER II and TITAN II ensuring perfect synergy.
What distinguishes G5 Brushless Motor from the competition?
-
-

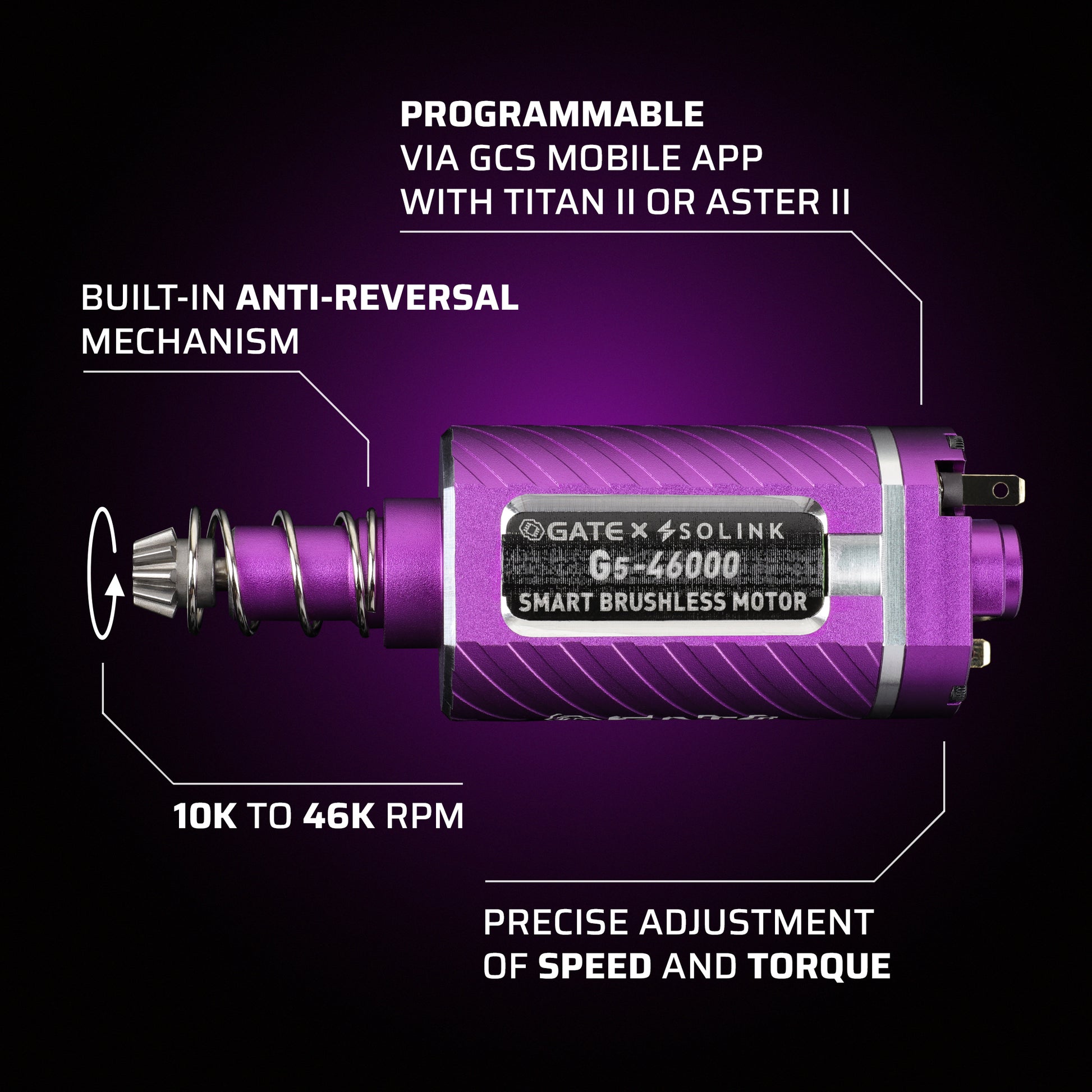

- The world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®
- Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking
- Extremely high torque, reaching up to 2334 g-cm
- Very wide RPM range: 10 000 - 46 000 RPM
- Highly durable motor connectors
- Integrated motor shaft manufactured using CNC technology
- Exceptionally effective braking system
- D-type pinion gear

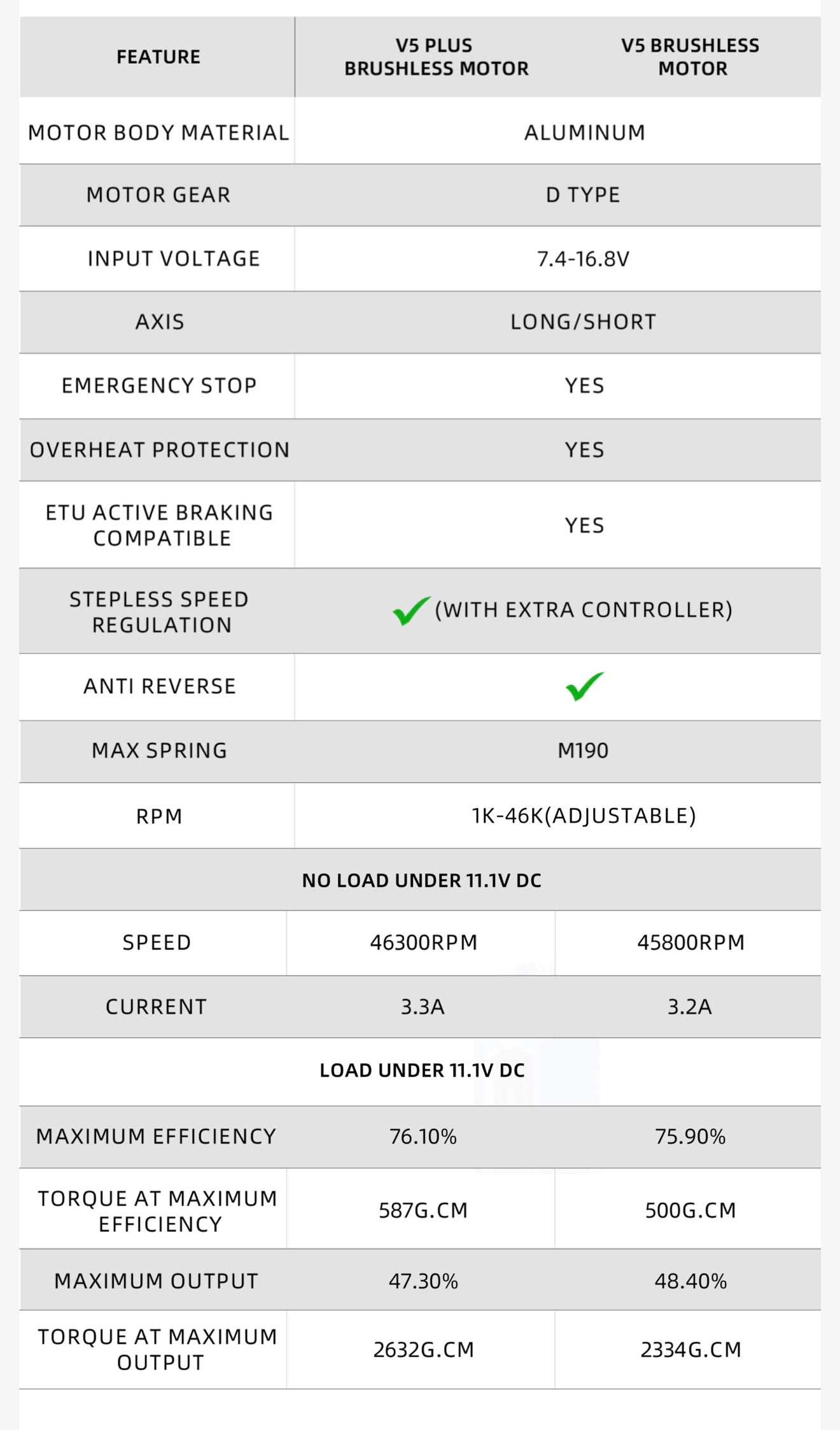

Specification of GATE G5 Brushless Motor for 11.1V
-
AT NO LOAD:
SPEED - 45 800 RPM
CURRENT - 3.2A -
AT MAXIMUM EFFICIENCY:
EFFICIENCY - 75.9%
SPEED - 40 987 RPM
TORQUE - 500 G/CM
CURRENT - 24.9 A
OUTPUT - 205 WATTS -
AT MAXIMUM OUTPUT:
EFFICIENCY - 48.4%
SPEED - 22 950 RPM
TORQUE - 2334 G/CM
CURRENT - 105 A
OUTPUT - 519 WATTS -
Supply Voltage Range
6 - 16.8 V
-
Dimensions (Length x Width x Height)
88.5 x 29.5 x 25 mm
-
Finished Product Weight
141 g
GATE G5™ Brushless Motor and ASTER II Bluetooth® / TITAN II Bluetooth® gives you total control of your replica.
-
The GCS app offers you the option to
- Control your brushless motor speed and torque even during gameplay
- Control your airsoft replica from a smartphone with Android, iOS and PC with Windows or macOS
- Easily adjust the ASTER II Bluetooth® / TITAN II Bluetooth® settings during the game
- Update ASTER and TITAN firmware – apply changes, make improvements, and get bugfixes
- Perform diagnostics and send reports
- View the BB counters, electrical measurements, and statistics
- Get the latest news from GATE Enterprise
- Acquire real-time data from your smartwatch (with Wear OS or watchOS)
- Have no more surprises with an empty magazine or a discharged battery
- get new motor settings in GCS and G5 Smart Brushless Motor is detected automatically
- Read potential DTC errors in case of issues with motor
-
