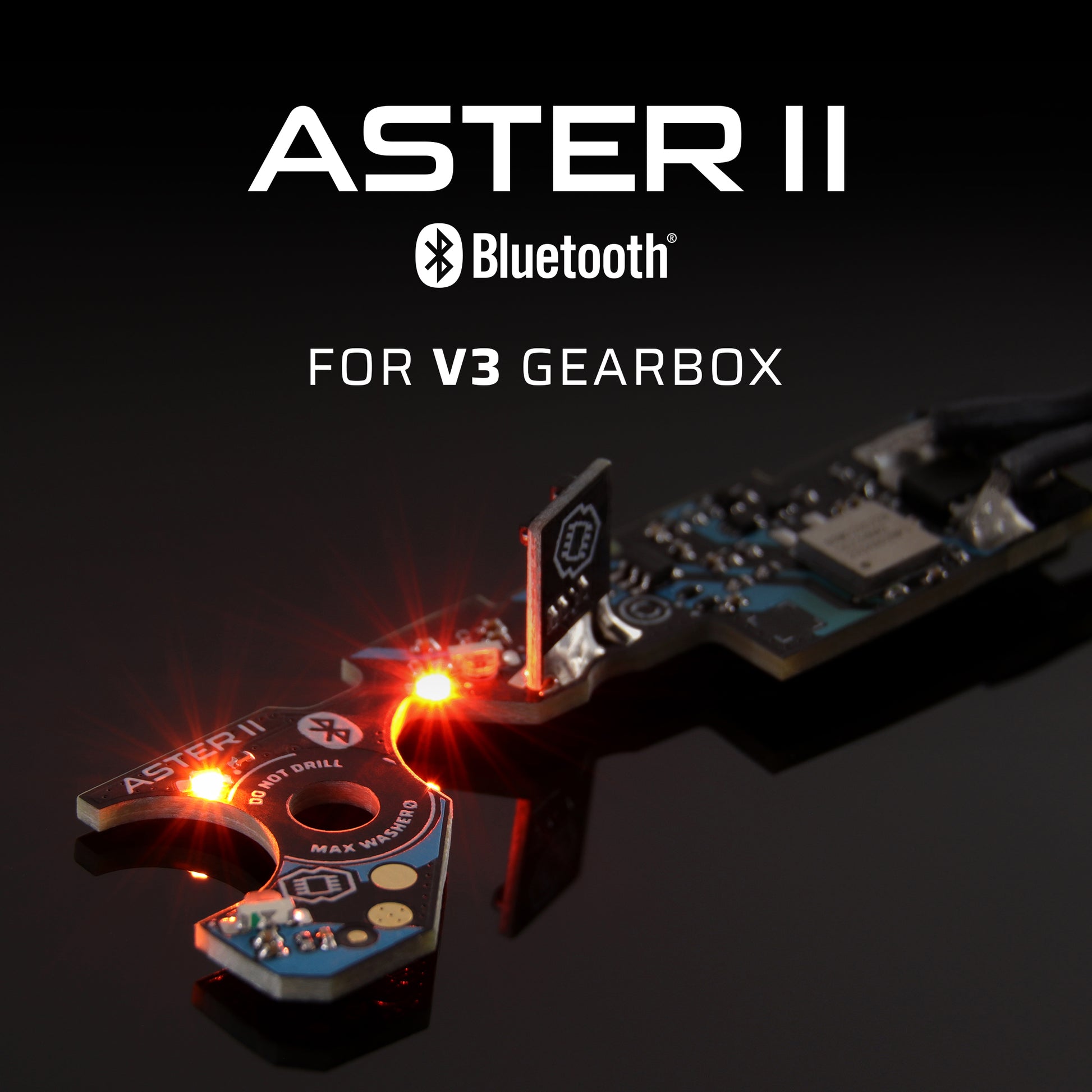

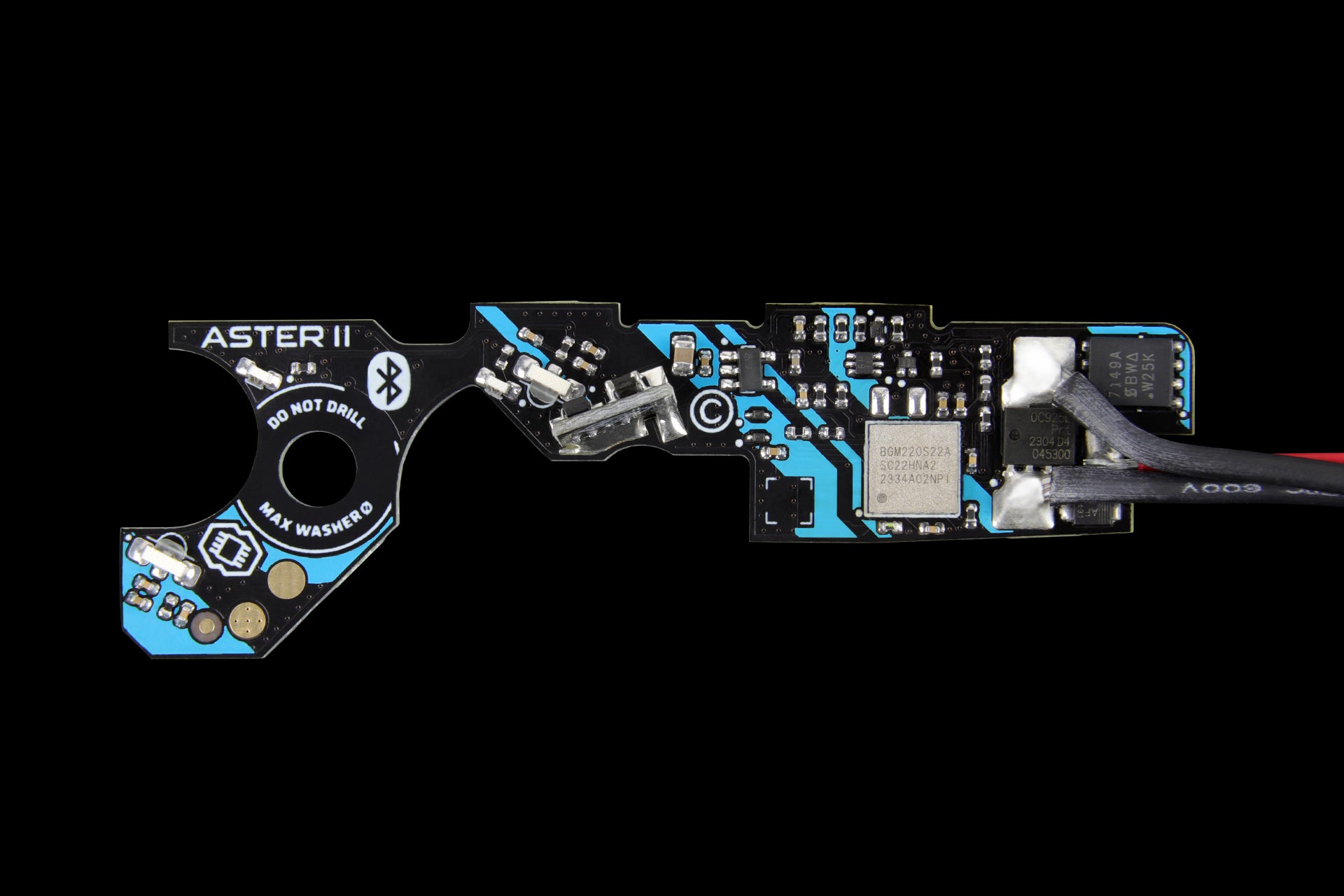

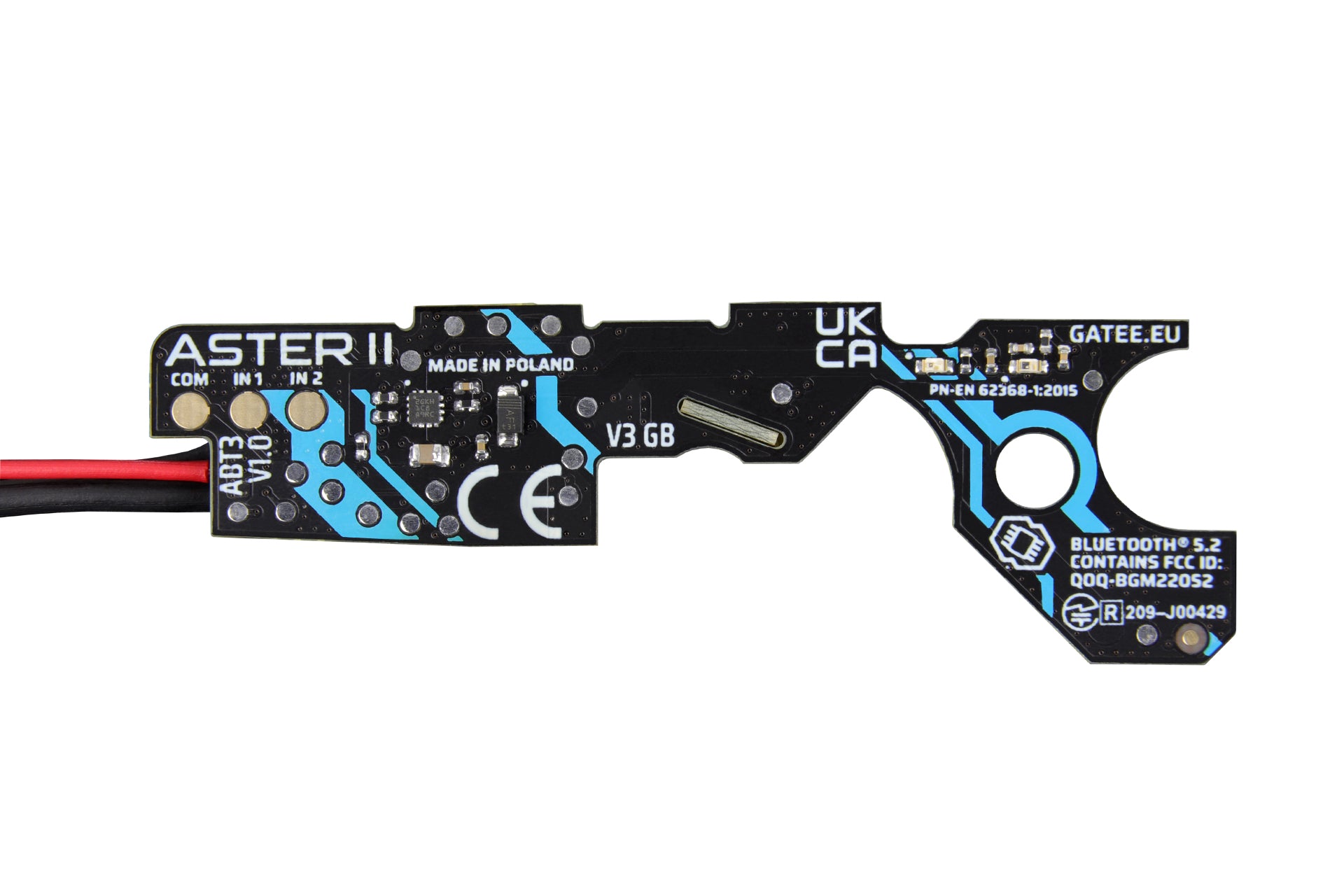

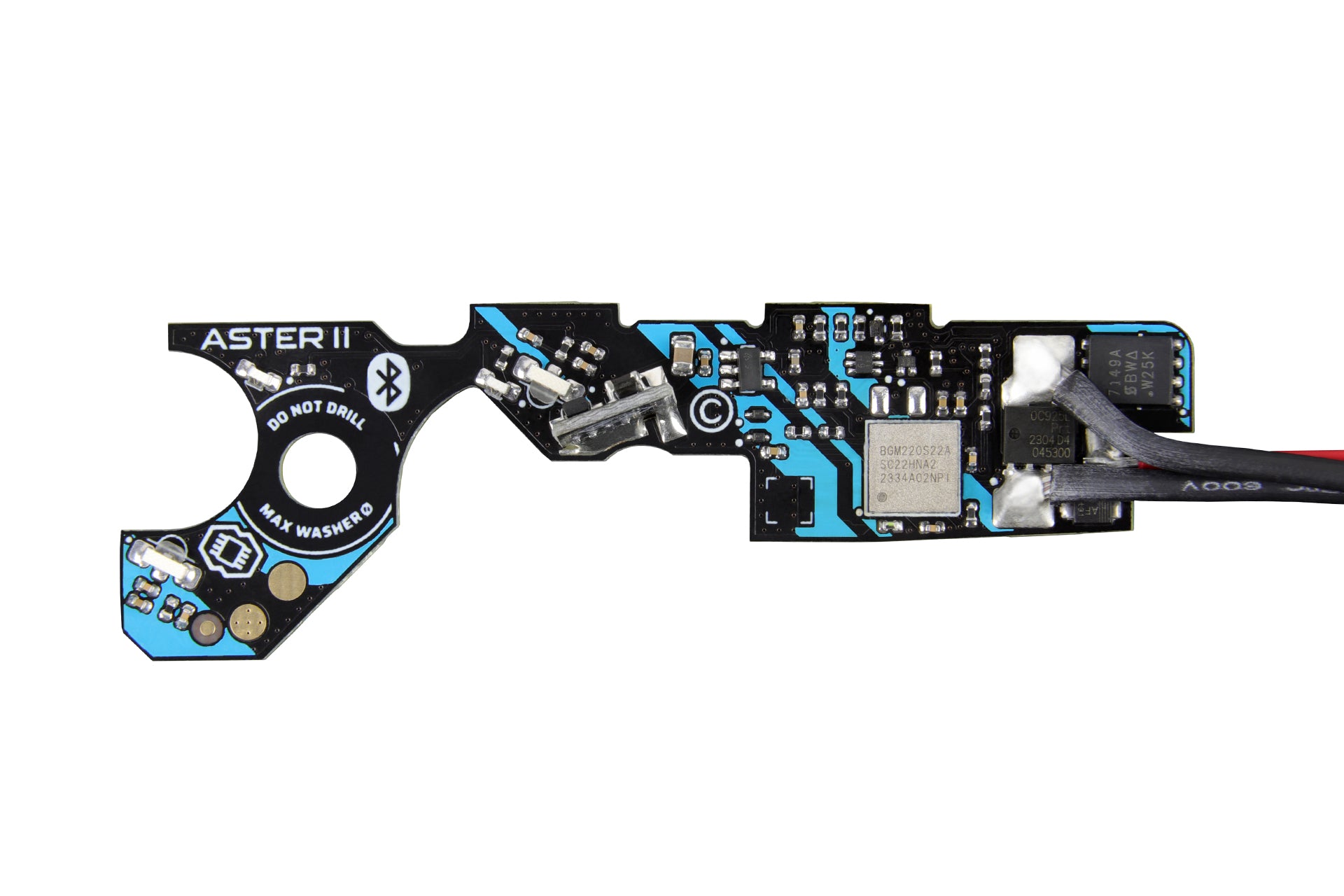

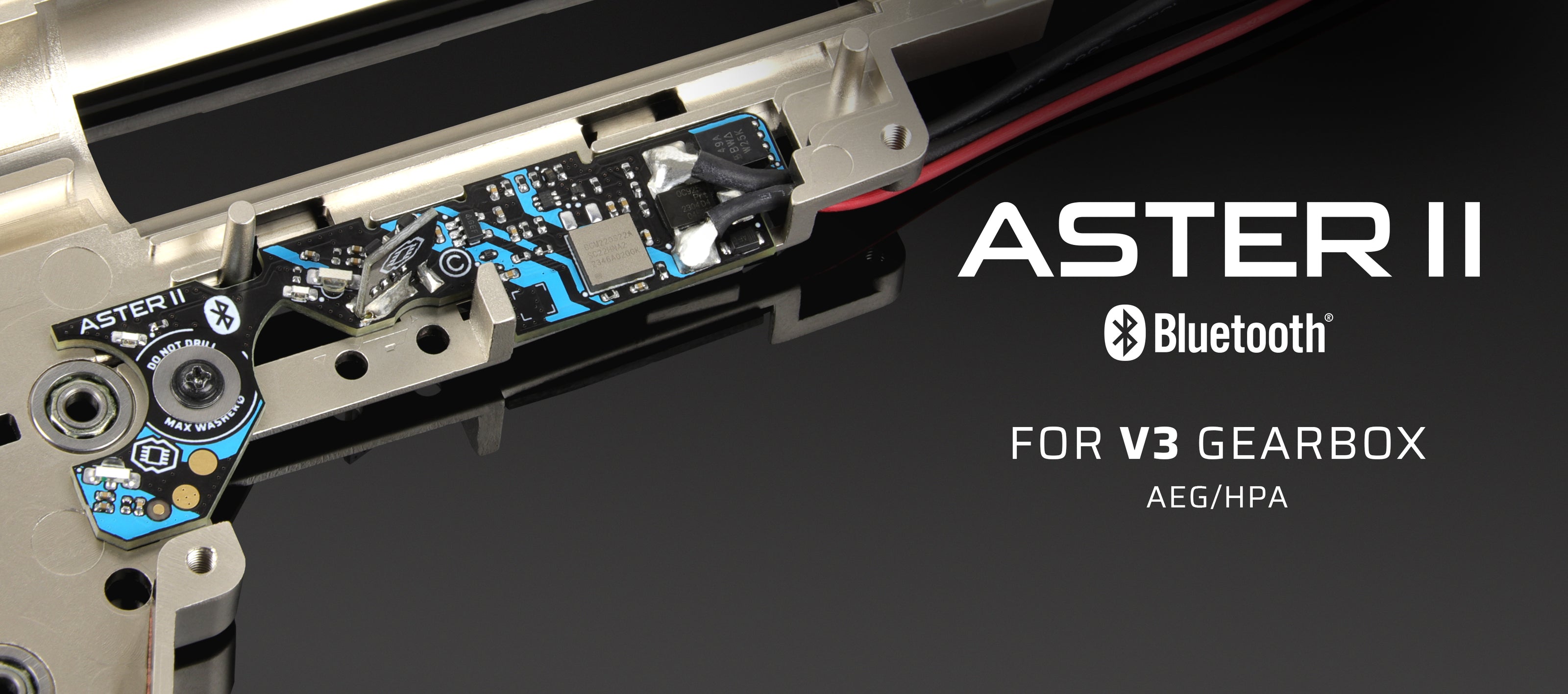

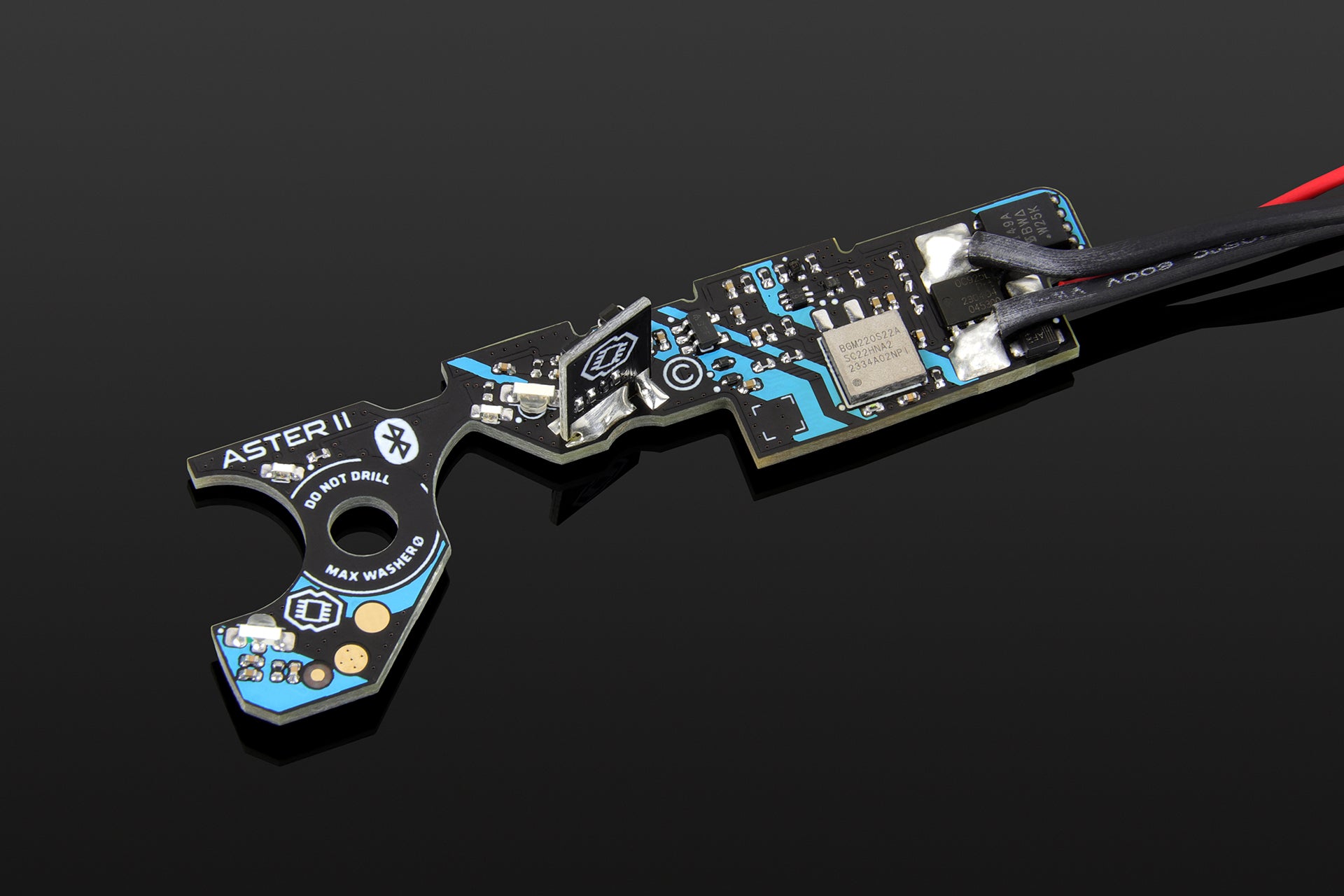

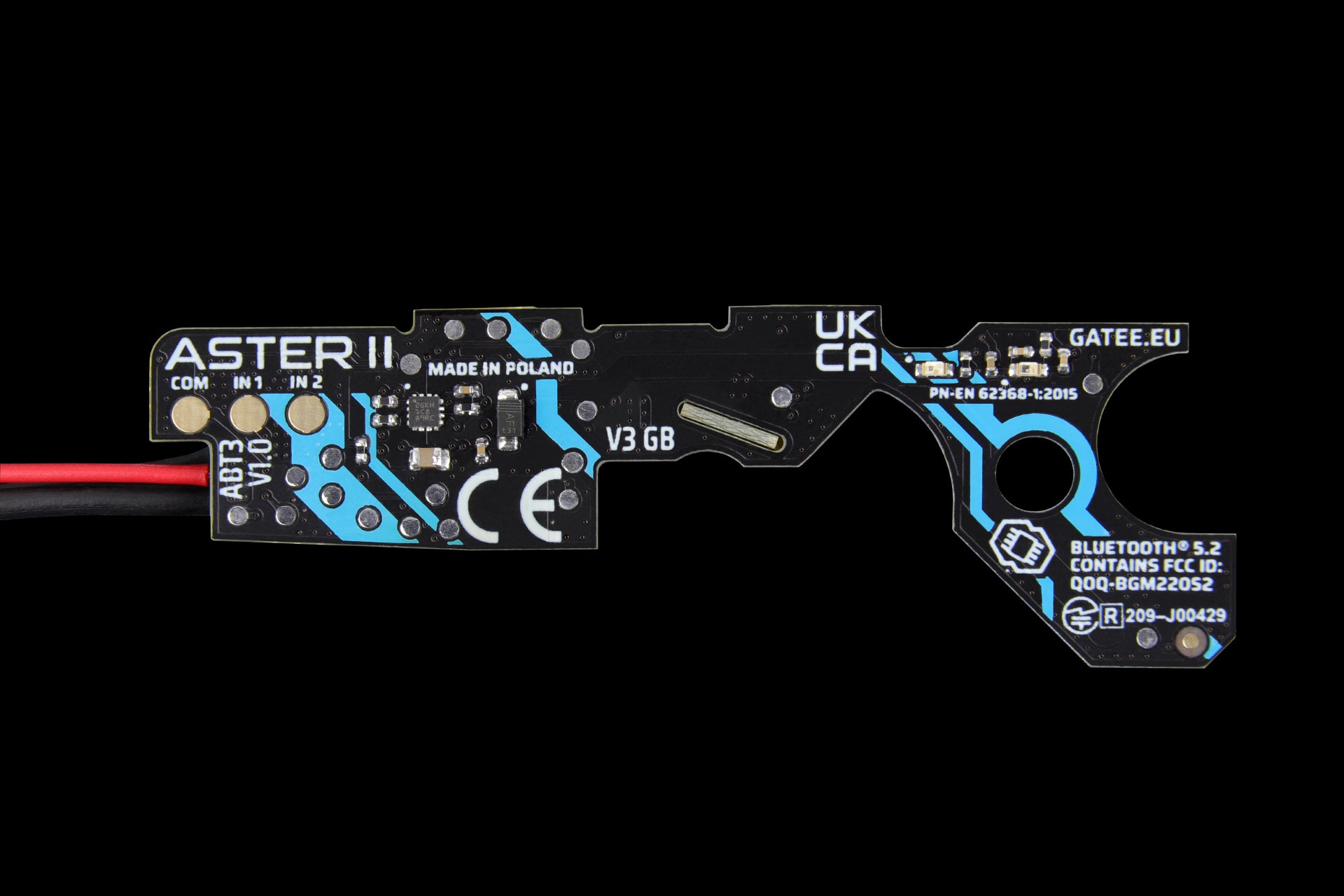

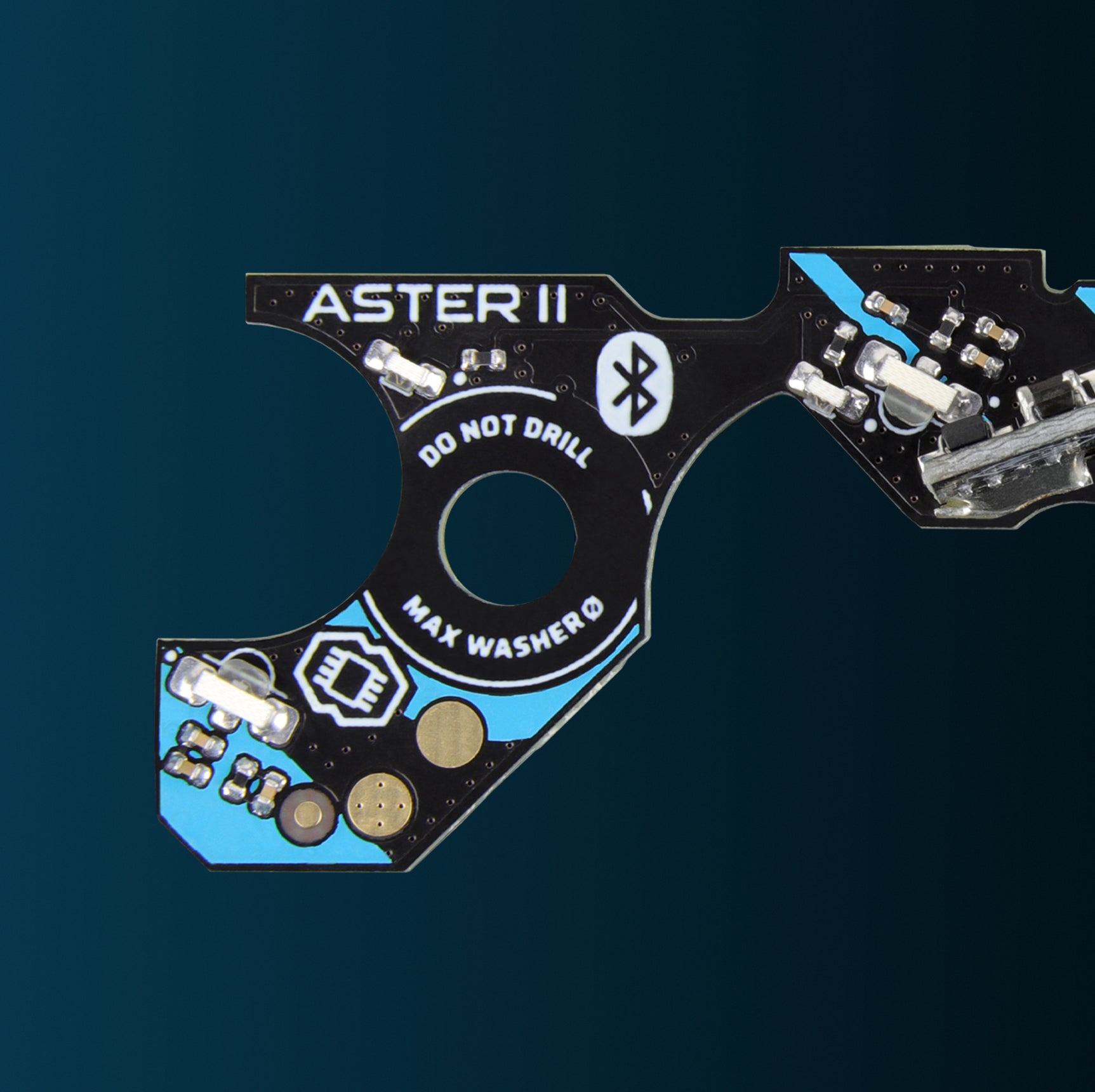

ASTER II Bluetooth® EXPERT for V3 GB [AEG & HPA]

ASTER II Bluetooth® EXPERT for V3 GB [AEG & HPA]

Regular price USD 113.79
Regular price USD 113.79 Sale price USD 113.79
Sale Sold out
Shipping calculated at checkout.

Compatibility

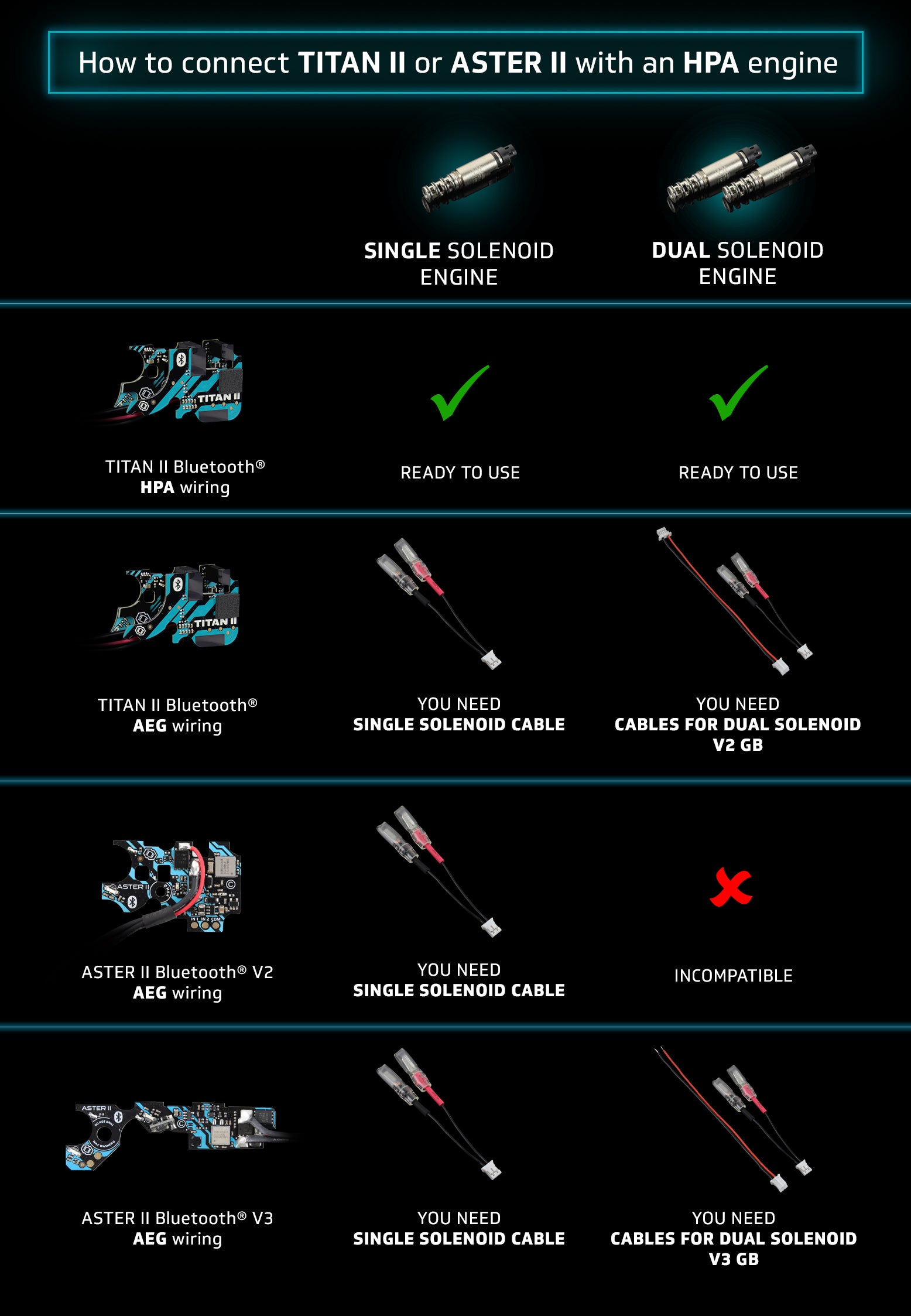

ASTER II Bluetooth® is compatible with:

dual solenoid HPA engines:

  • PULSAR D
  • PolarStar F2

when used with Cables for dual solenoid – not included in the set

single solenoid HPA engines:

  • PULSAR H
  • PULSAR S
  • Wolverine INFERNO Gen 2
  • Wolverine REAPER
  • PolarStar JACK
  • Redline N7

when used with Cable with connector for single solenoid –not included in the set

Free express shipping

Free express shipping via courier on all orders over 250 USD

Shipping & Returns

Destination Express shipping via Fedex/UPS Polish National Postal Service
 Europe 2-7 business days 1-2 weeks
Asia 2-5 business days not available
US/Canada 2-3 business days not available
Australia 3-4 business days not available



*Please note that the above delivery times may be extended due to custom duty procedure.



1. The Goods purchased in the Online Store are delivered worldwide, subject to territorial restrictions under applicable laws.
2. The Goods are delivered via specialised courier companies or Poczta Polska (the Polish national postal operator). In some cases, the Goods may be personally collected from the Seller’s registered office, and in the case of the Goods that represent digital content – they may be downloaded on an appropriate device.
3. The Goods are shipped within 1 to 3 (one to three) business days from payment booking. In some cases, the Goods can be shipped at a later date. This applies also to the Goods sold in advance (pre-sale). In such a case, the Seller shall inform the Client about a shipment date. An approximate shipment delivery date depends on a delivery method selected and a destination country, and is specified at order placement. When selecting a transfer payment option, the delivery time indicated on the Website shall be increased by time needed to credit the Client’s entire payment to the Seller’s bank account, usually 1-2 (one to two) business days. Further, in the case of countries outside the European Union, due to distance and potential customs controls the delivery time may be prolonged up to 5 weeks.
4. Detailed delivery method information is available in the Online Store in a Cart section of the given Product.
5. The Goods are shipped to an address specified in an order form or provided by phone or by e-mail. The Seller shall promptly inform the Client about the fact that an order form has been filled in incorrectly if this prevents or delays the conclusion of the Sales Agreement or the delivery of the Goods.
6. Prior to the acceptance of shipment from a postal or a courier service, packaging should be checked for any potential damage inflicted in transport. In particular, the condition of tapes or seals placed on the shipment shall be verified. If shipment package shows any signs of damage or if the seals (tapes) are removed, the shipment shall not be accepted, a damage report shall be prepared in the presence of a courier and the Seller shall be contacted as soon as possible in order to clarify the issue. If discrepancies in terms of shipment quantity or quality are not detected at the acceptance, this might adversely affect the resolution of the Client’s claims filed due to shipment damage or theft in transport.
7. In the case of the Goods that represent the firmware upgrade of devices distributed by the Seller (digital content), the Client, upon the placement of the Order, conclusion of the Sales Agreement and payment, shall connect to a GATE CONTROL STATION desktop application via a USB-Link or Blu-Link device and install the upgrade purchased.

View full details
  • The newly released ASTER II Bluetooth® is a total game changer for V3 gearbox owners bringing a breath of fresh air and brand new capabilities to all V3 gearbox replicas both for AEG and dual solenoid HPA. With Bluetooth 5.2 technology, you have direct access to settings, AEG telemetry, and extended features with the GCS mobile device and smartwatch app. ASTER II Bluetooth® is the first such versatile unit for V3 gearboxes – compatible with both AEG and HPA. The AEG version works with both brush motors and also with brushless motors, even at 11.1 V. HPA enthusiasts, on the other hand, can connect both single solenoid valve and dual solenoid HPA engines. Adjustable trigger sensitivity, automatic Pre-cocking, Active Brake with adaptive mode and reliable optical sensors create an ideal system. The goal of creating ASTER II Bluetooth® for GB V3 was to build a versatile ETU, incorporating the latest GATE technology at a reasonable price.

  • Connect your ASTER II Bluetooth® with the GCS App and get total control of your AEG. Control your airsoft replica from your iOS, Android, macOS or Windows device using a built-in Bluetooth®. You no longer need dongles such as USB-Link or Blu-Link. Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win and even use your smartwatch as remote trigger.

    Download GCS App
  • Extraordinary quality-to-price ratio:

    • ASTER II Bluetooth® gives you total flexibility thanks to Bluetooth® 5.2 and compatibility both with AEG and HPA. You can update your firmware and get new options, connect additional accessories, check telemetry. Now – right off the shelf. At no extra charge.
    • GCS app for iOS, Android, macOS or Windows
    • GCS app for your smartwatch (Wear OS or watchOS) – real-time data like BB counters & remote trigger!
    • compatibility both with AEG and both single and dual solenoid HPA engines; for dual solenoid engines use the dedicated soldering pads
    • configurable trigger reset (hysteresis)
    • top-notch automatic pre-cocking
    • free internet firmware updates
    • ASTER II Bluetooth® is a part of the GATE Ecosystem
    • lowest in the market current consumption deep sleep mode with only 130 uA current consumption prevents battery discharge
    • built-in voltage boost converter means trouble-free operation with weaker batteries and increases the switching efficiency
    • 3.75 V ready – ASTER II Bluetooth® operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
    • sensor supporting Infinite Torque-up, DSG, SSG, 19-tooth, and standard gears
    • the possibility of using a mechanical trigger lock
    • extended compatibility with brushless motors – works perfect with brushless motors even with 11.1 V batteries
    • Multifunctional programmable I/O port – allows to connect bolt-catch sensor, magazine sensor, and more
  • What makes ASTER II Bluetooth® so special?

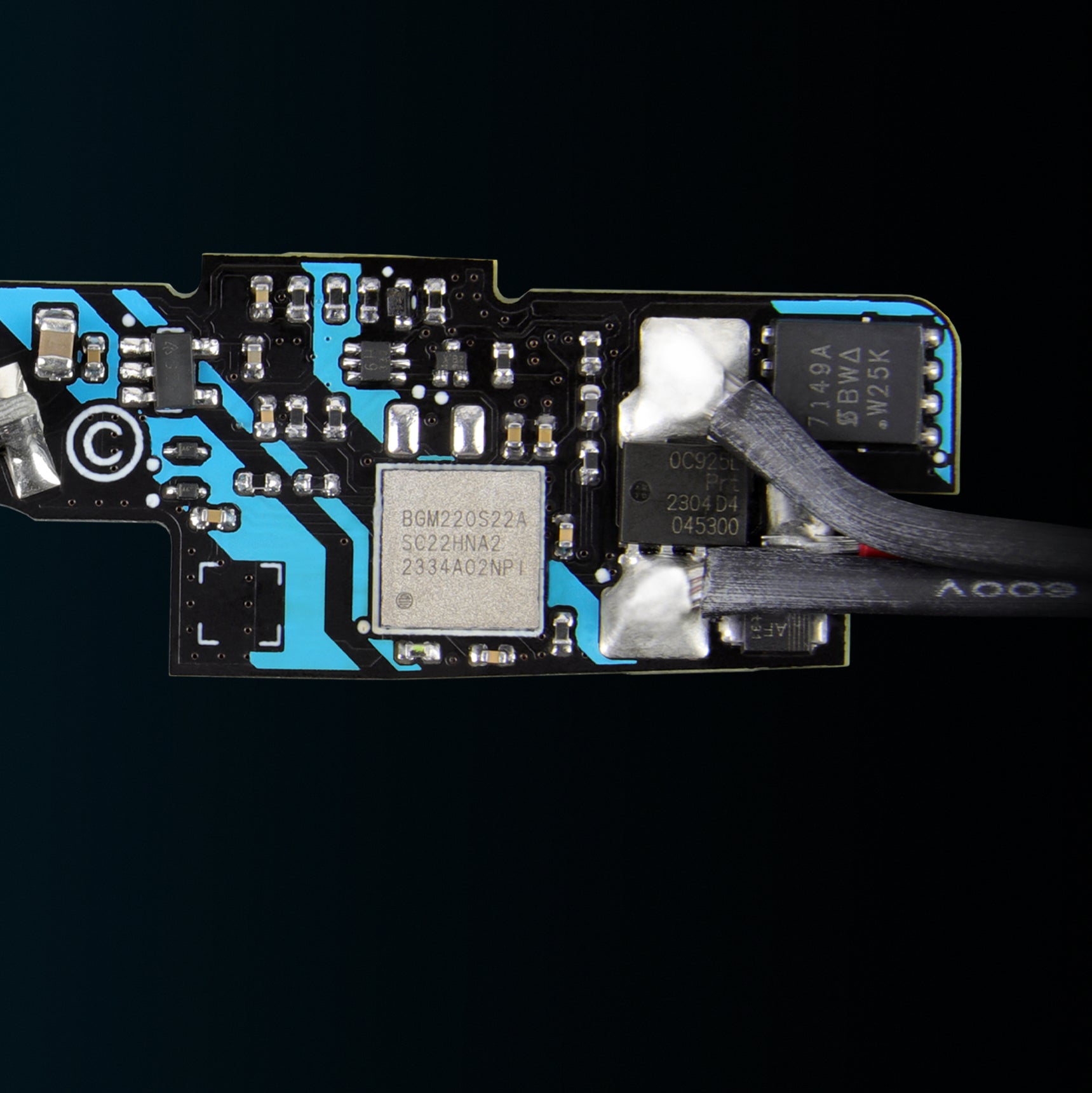

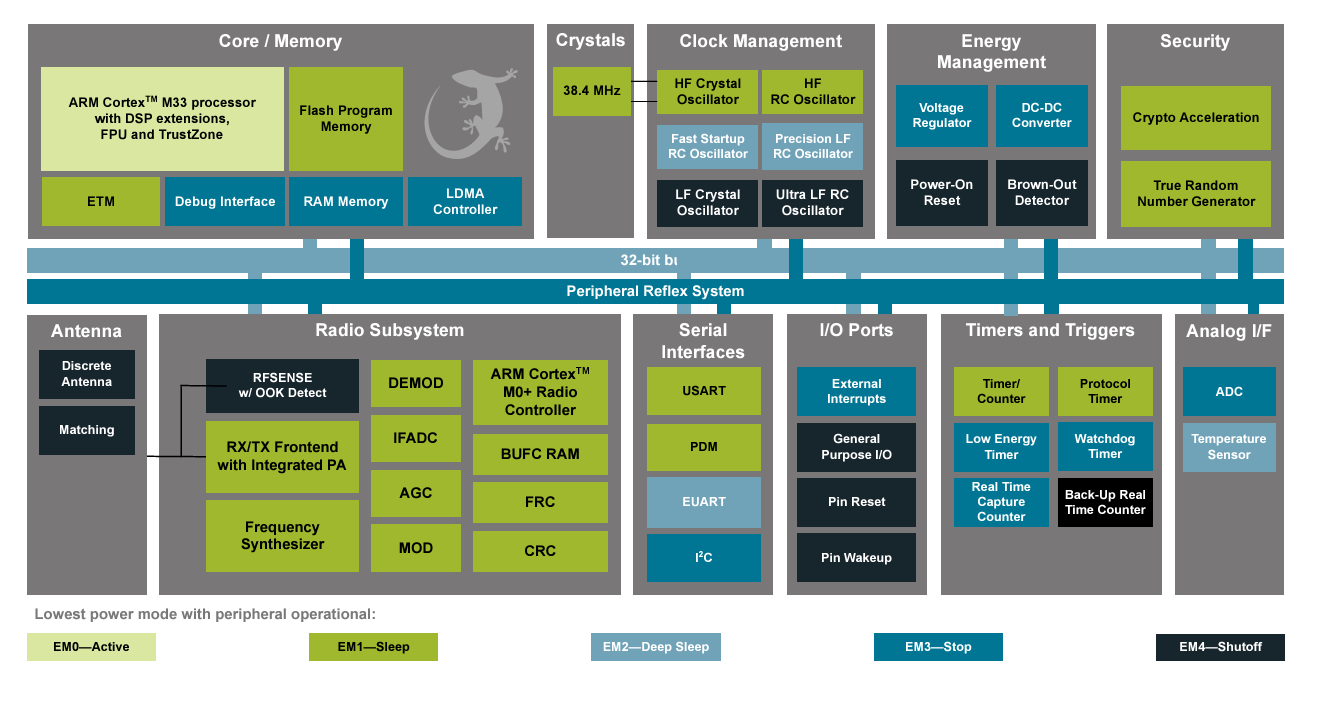

    • ASTER II Bluetooth® features the BGM220S processor from renowned Silicon Labs, with a pre-qualified Bluetooth Low Energy RF-PHY Tested Component. Based on the EFR32BG22 SoC, the BGM220S enables Bluetooth® Low Energy connectivity while delivering best-in-class RF range and performance, future-proof capability for feature and OTA firmware updates, enhanced security features, and low energy consumption. The 32-bit ARM Cortex-M33 core at up to 76.8 MHz, 512/32 kB of Flash/RAM memory provides best-in-class cycle control, an evolved self-calibration algorithm, faster response to external signals, noise immunity, and tremendous future-proof capability for the GATE Ecosystem.
    • Everything you need out-of-the-box
    • Built-in Bluetooth® 5.2
    • Hair trigger out-of-the-box
    • Additional protection against interferences thanks to multi-layer PCB with EMC shield
    • Automatic Pre-Cocking: 0-5
    • Trigger sensitivity adjustment without any limitation – what’s more, you can now adjust Trigger Reset (hysteresis)
    • Improved cycle detection
    • Active brake adjustment: Adaptive / 1-100%
    • 343 selector modes. All possible combination of: SAFE, SEMI, BURST, BINARY, BURST/AUTO, AUTO & SEMI RAMPING
    • The GCS app enables firmware updates via the internet, which means instant application of improvements


    What is an ETU?

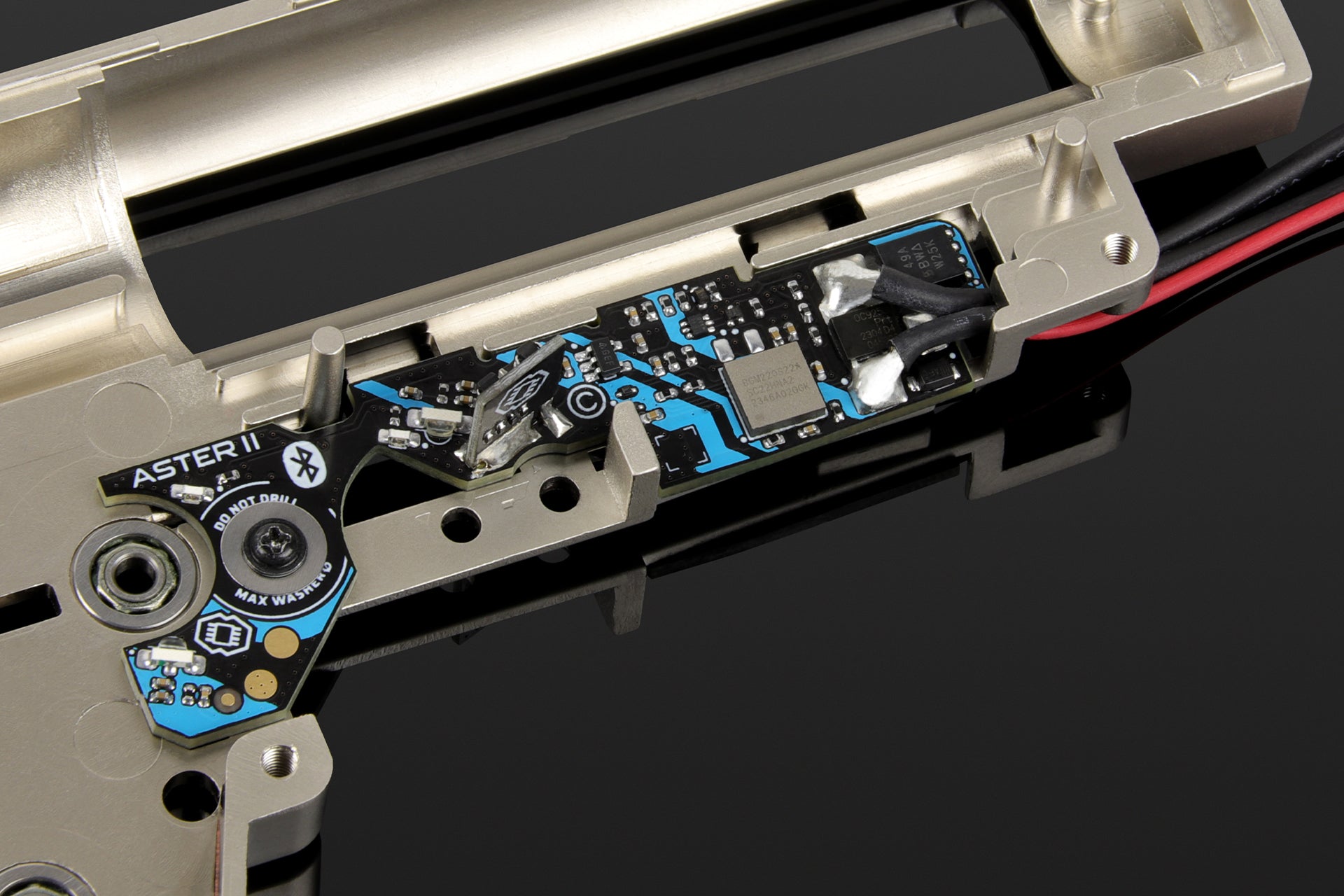

    It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.



    What is the self-learning automatic pre-cocking?‎

    • thanks to pre-cocking, you gain trigger reaction similar to real life
    • automatically sets piston position
    • easy-to-use – just set one of the 5 modes: 0-5
    • automatically adapts to the battery voltage and rate of fire
  • ASTER II Bluetooth®

    Supply Voltage Range [AEG application]

    3.75 - 12.9 V

    Supply Voltage Range [HPA application]

    5 - 8.6 V

    Rated Current

    30 A

    Current Consumption

    20 mA

    Low Power Mode

    130 µA

    Dimensions (Length x Width x Height)

    73.5 mm x 24 mm x 12.5 mm

    Finished Product Weight

    26 g

    Operating Temperature Range

    min. -15°C max. + 50°C

    Relative Humidity

    ≤ 80%

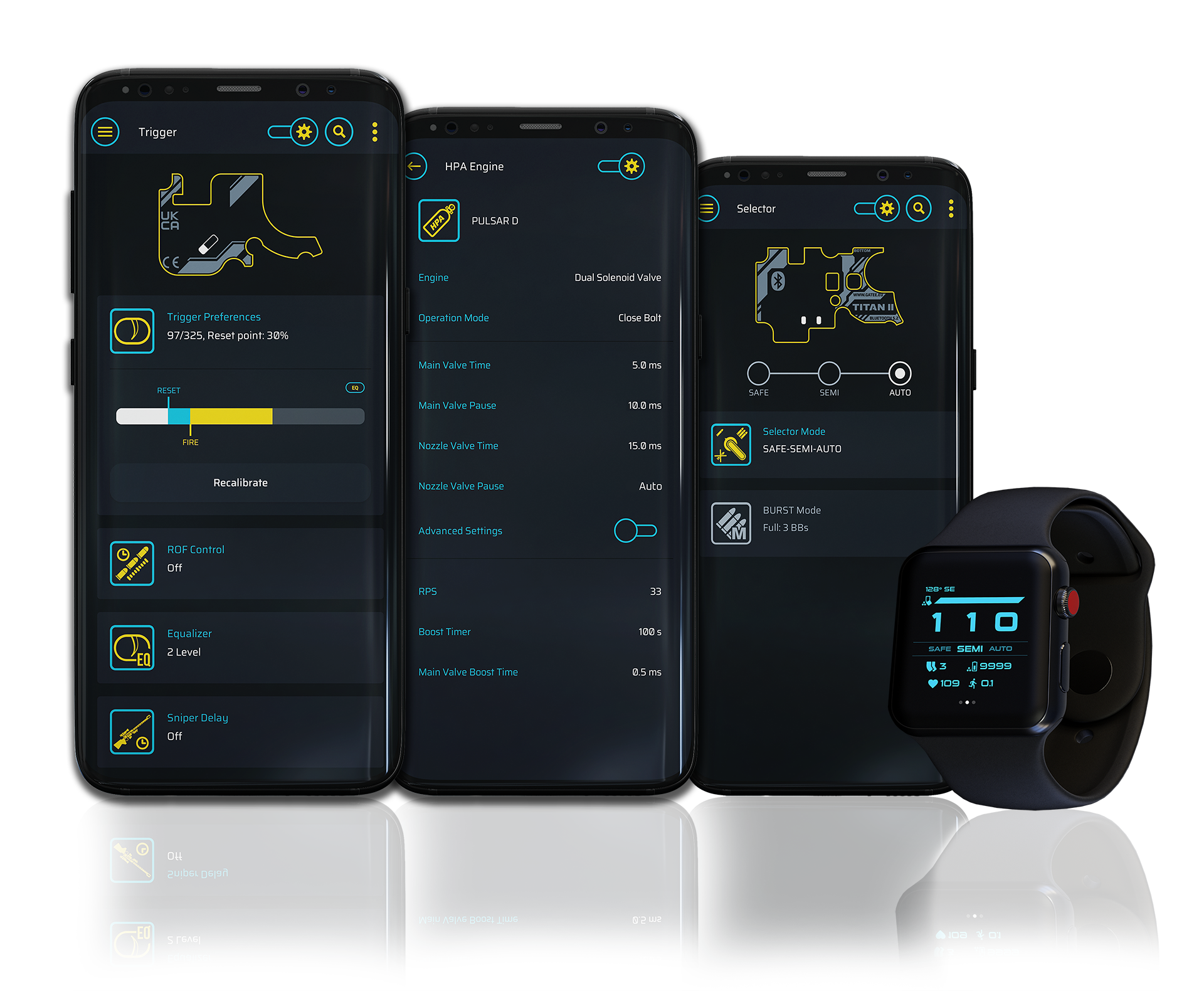

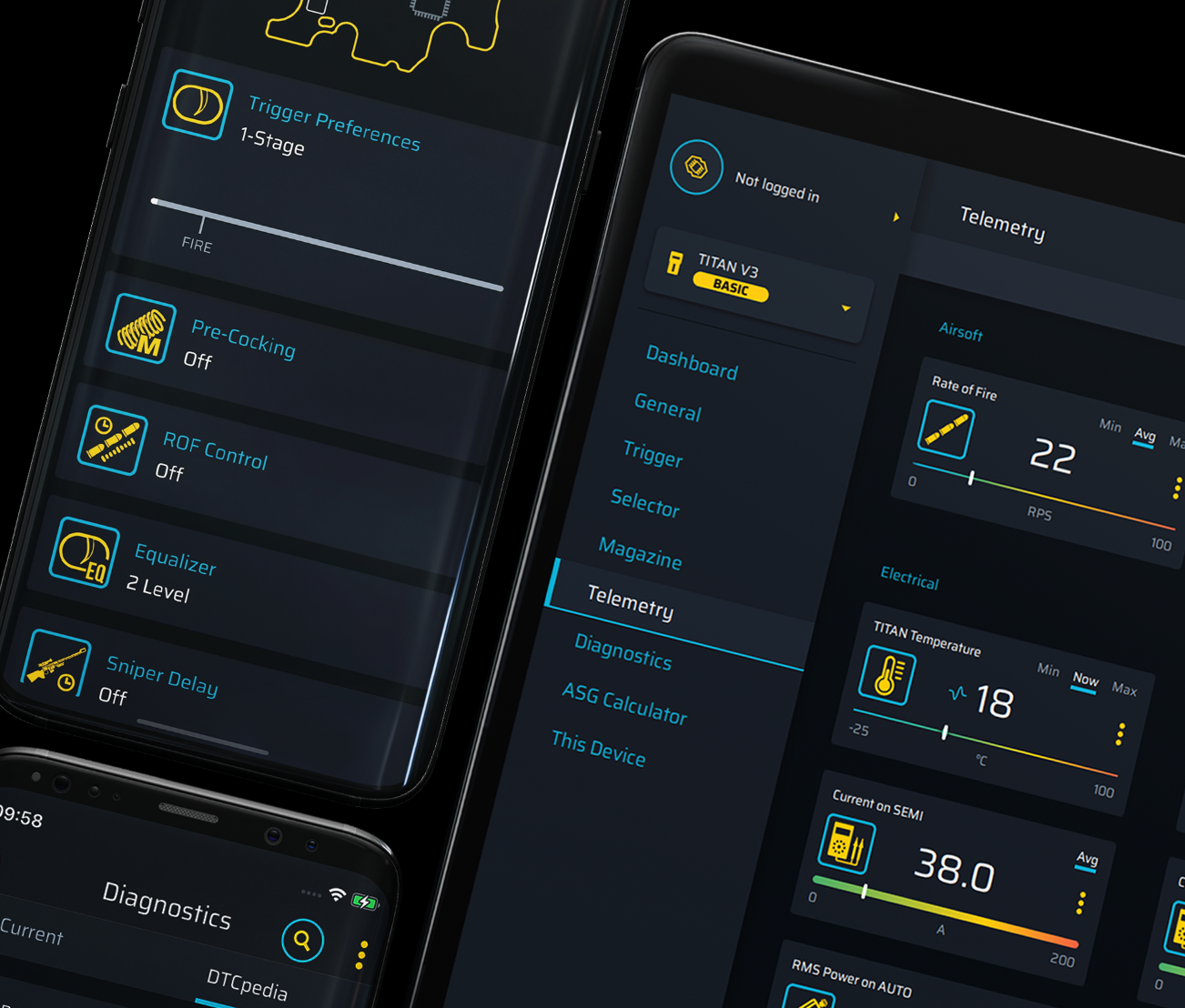

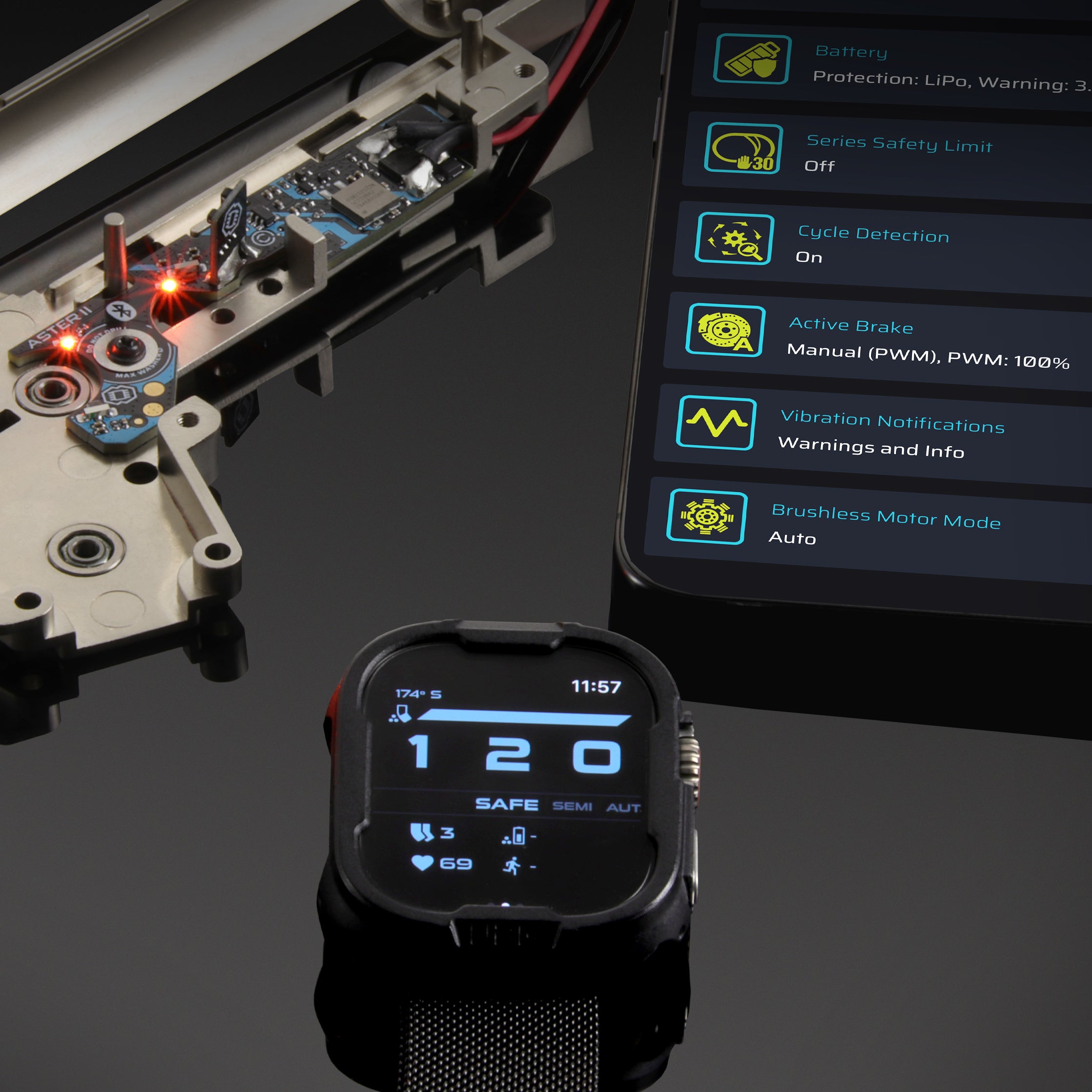

  • GCS App

    ASTER II Bluetooth® and GCS app gives you total control of your replica.

    With the GCS app you

    • control your airsoft replica from a smartphone with Android, iOS and PC with Windows or macOS
    • easily adjust the ASTER II Bluetooth® settings during the game
    • update your firmware – apply changes, make improvements, and get bugfixes
    • perform diagnostics and send reports
    • view the BB counters, electrical measurements, and statistics
    • get the latest news from GATE Enterprise
    • acquire real-time data from your smartwatch (with Wear OS or watchOS)
    • have no more surprises with an empty magazine or a discharged battery

    Download GCS App

ASTER II Bluetooth®: 19 FEATURES with millions of options

BRUSHLESS MOTOR READY

Your ASTER II Bluetooth® is fully compatible with popular brushless motors even 11.1 V batteries.

SERIES SAFETY LIMIT

Predefined number of BBs fired per series, maximum series length limit – should the trigger jam, it will stop shooting on AUTO after firing the set number of BBs.

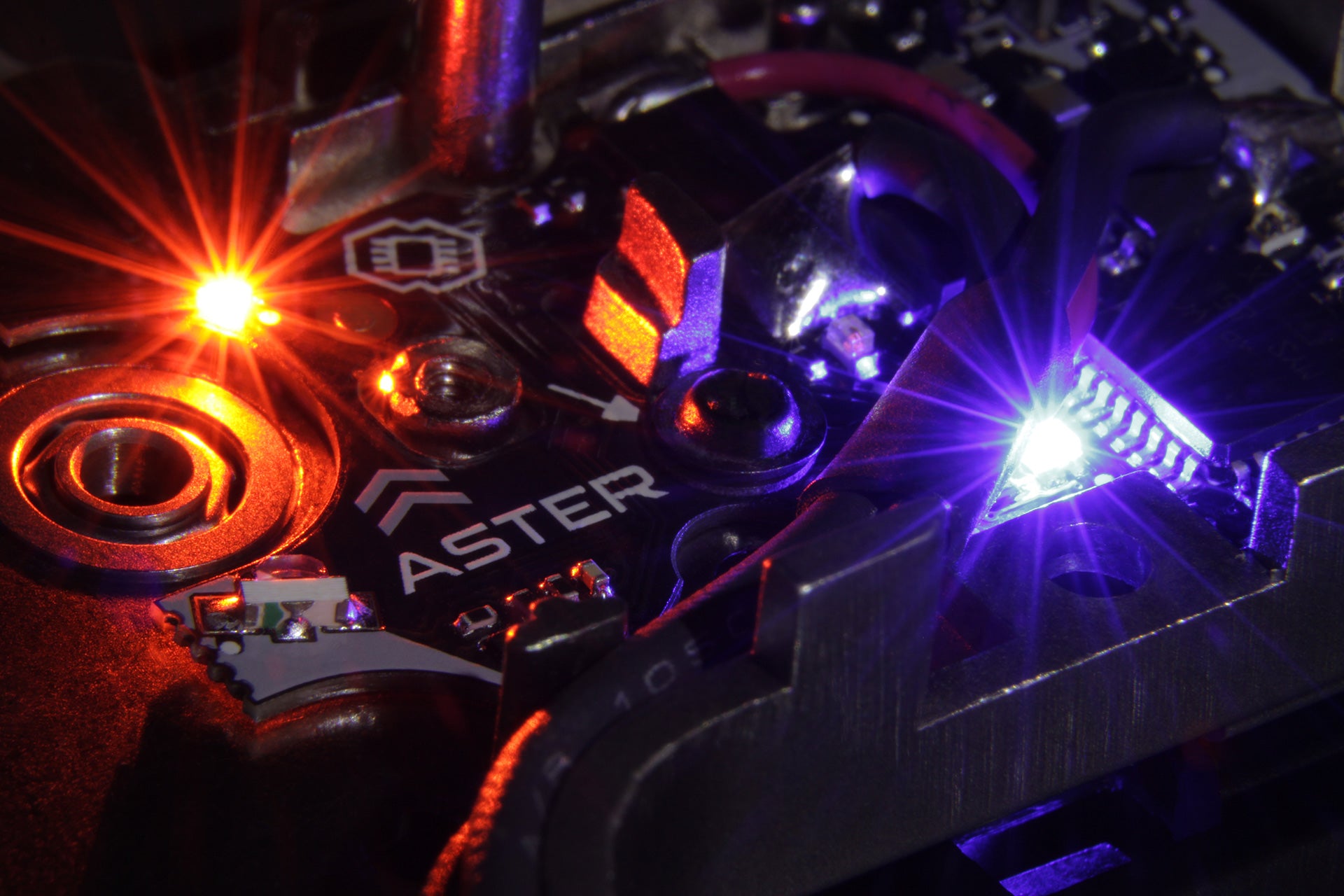

CYCLE DETECTION

Automatic detection of a full gear cycle for setting BURST and SERIES SAFETY LIMIT.

The ASTER II Bluetooth® sensor detects the cam of the gear instead of the teeth, making it possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth and standard gears.

ACTIVE BRAKE

Elimination of unnecessary wear & increase of gearbox service life – automatic adjustment of braking power and manual configuration from 0-100% with an accuracy of 1%.

VIBRATION NOTIFICATIONS

Vibrations signaling warnings & information.

TRIGGER SENSITIVITY SETTINGS

Trigger sensitivity adjustment without any limitation – what’s more, you can now use Trigger Reset point (hysteresis).

PRE-COCKING & DE-COCKING

PRE-COCKING

Automatic spring compression for real life touch & feel – set the pre-cocking power between 0 and 5. Manually configure the pre-cocking time in MANUAL Mode.

There are two Pre–Cocking Modes:

  1. AUTO Mode – the spring is automatically compressed after each shot–you choose the level of Pre–Cocking from 0-5
  2. MANUAL Mode – set the Pre–Cocking values yourself–instead of levels there are time settings, you have to choose the time for yourself by trial and error

Please note: using Pre–Cocking increases wear and tear on the gearbox.

DE-COCKING

Release of the compressed spring in a short and simple trigger and selector sequence. De-cocking extends spring, piston and gear lifecycle. A good practice is to release the spring after every game with enabled pre-cocking.

ROF CONTROL

Rate of Fire reduction for stronger battery use, automatic brake and delay settings, setting braking power in percentages, delay between shots in milliseconds or braking power & delay manually; adaptive ROF allows you to set a specific ROF and the system will adjust the settings itself to achieve the set ROF.

EQUALIZER

You don't need to fully release the trigger to fire the next shot. This option is really useful when the trigger sensitivity level is very high. Choose between

  • OFF – to fire the next shot, you need to release the trigger until it reaches the selected trigger reset point.
  • 2LVL – to fire the next shot, just release the trigger until it moves over two adjoining sensors.
  • 1LVL – to fire the next shot, just release the trigger until it moves over an adjoining sensor.

SNIPER DELAY

Reload or recoil simulation for a more realistic experience.

SELECTOR MODES incl. BURST MODE

7 options in each selector position including SAFE, SEMI, BURST, BINARY, BURST/AUTO, AUTO & SEMI RAMPING

SAFE – prevents your replica from firing, even if the safety lever is removed

SEMI – fire one shot per one trigger pull

BINARY – one shot on the trigger pull and another shot upon release

BURST – shoot a predetermined number of BBs, which is very useful in MilSims and when using low-caps; there are 2 BURST Modes available:

  • Full – a burst is shot in full, even if the trigger is released before the preset number of BBs has been shot
  • Interruptible – the burst can be interrupted by releasing the trigger earlier – even if not all the BBs from the burst have been shot the replica stops firing once the trigger has been released

BURST/AUTO – available in Full BURST Mode only; allows for extending a burst by any number of shots – if you hold the trigger after the burst is shot, it switches to AUTO Mode

AUTO – shots are fired as long as the trigger is pulled

SEMI RAMPING – if you pull the trigger very fast, it switches to AUTO Mode

Please note: In the case of Regional Lock, only SEMI Mode is available. Check law restrictions in your country.

MAGAZINE FEATURES

Simulates magazine capacity and magazine reload. Allows you to set the magazine capacity and the time between reloads, allowing you to use a MID-CAP magazine and maintain realism by limiting the capacity, for example, to 30 shots, and setting a pause in shooting for a few seconds, simulating a magazine change.

TELEMETRY

Airsoft data at your fingertips, including: Voltage, BB Counter, Motor Cycle Counter, Rate of Fire, ROF on SEMI, Trigger Response, and more.

DIAGNOSTICS

Warnings & errors for instant troubleshooting, including detailed descriptions. Errors are communicated once they occur.

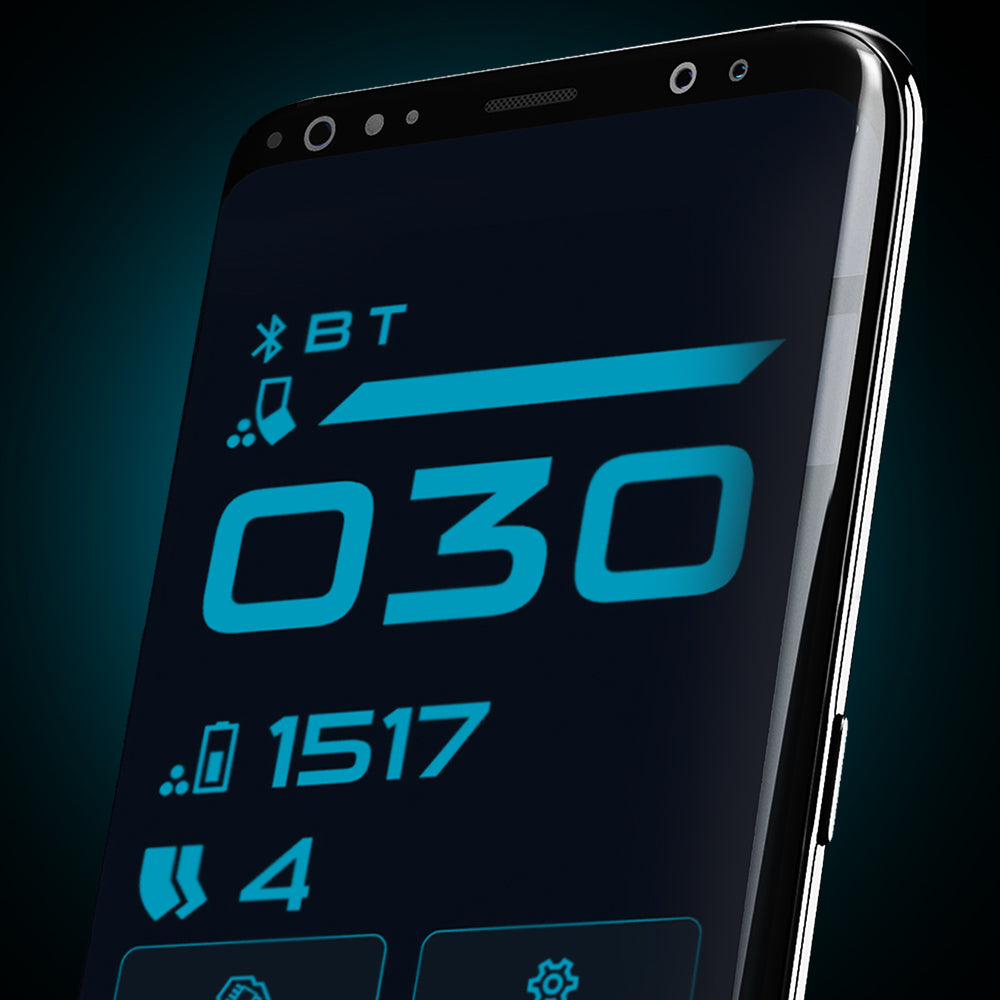

VIRTUAL STATUS

Counts the number of rounds left in the magazine, like in computer games.

ASG CALCULATOR

Useful tool for calculations.

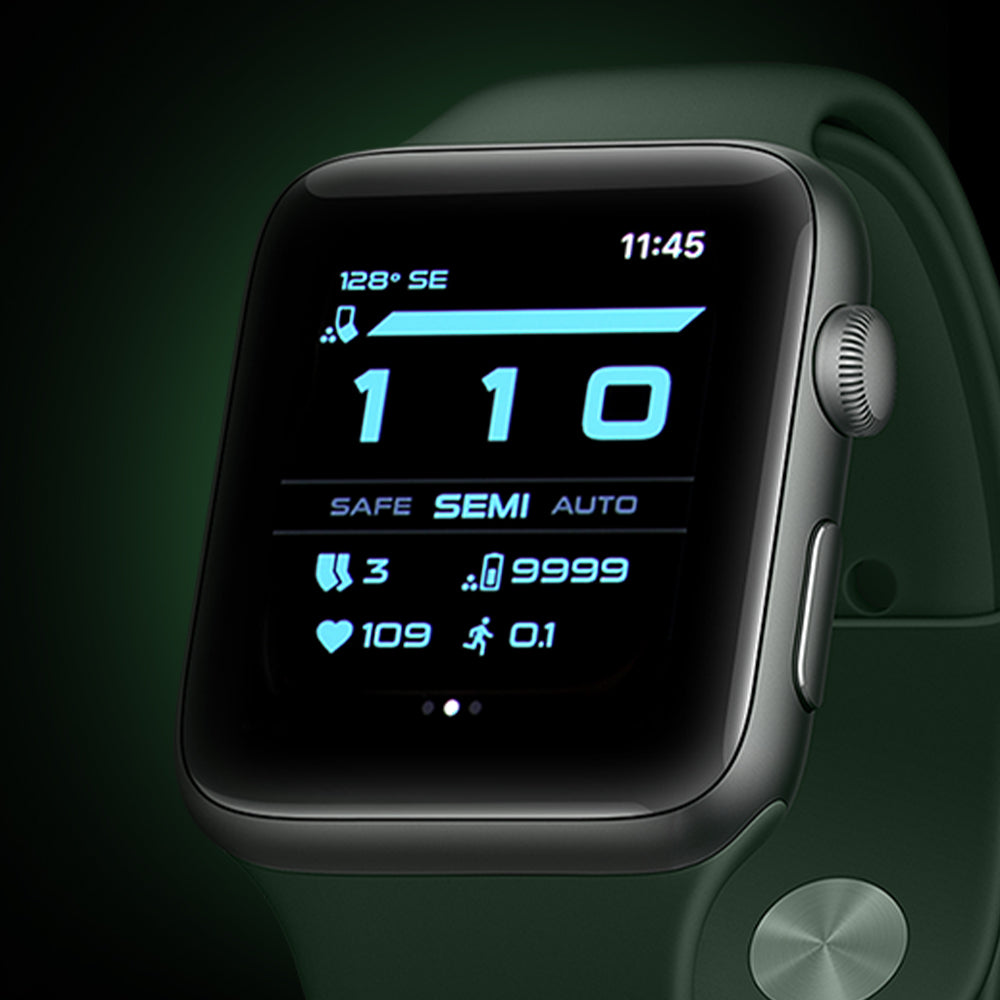

SMARTWATCH COMPATIBILITY

Real-time data & remote trigger from your smartwatch with Wear OS or watchOS.

MULTIFUNCTIONAL PORT

I/O functionalities – ability to connect two input/output devices: bolt-catch sensor, magazine sensor, external trigger or other compatible I/O device.

BATTERY PROTECTION & WARNING

  • configurable battery protection functionality
  • protection against overdischarge
  • automatic detection of the number of cells in the battery
  • low battery warning
  • configurable low battery voltage warning threshold

Which ETU is best for you – ASTER II Bluetooth® for V3 or ASTER for V3?

  • ASTER II Bluetooth® for V3

    Release year
    2024

    Access to GCS

    Direct with built-in Bluetooth® module

    Processor

    Faster response time, more flash & RAM memory

    Current consumption

    Longer lasting battery consuming just 20 mA and 130 µA in low power mode

    Assembly

    Single board with improved cable routing

    HPA engine compatibility

    Single and dual solenoid valve engines

    Gear sensor

    Improved gear sensor detection, precision and cycle repeatability

    Multifunctional programmable port

    I/O port for bolt-catch, magazine sensors, and more. No power supply capability for devices from the port. Soldering pads. No socket.

  • ASTER for V3

    Release year
    2020

    Access to GCS
    Additional Blu-Link or USB-Link required

    Processor
    Standard response time, limited flash & RAM memory

    Current consumption
    Battery consumption – 23 mA and 288 µA in low power mode

    Assembly
    Single board

    HPA engine compatibility
    Not compatible

    Gear sensor
    First generation

    Multifunctional programmable port
    Unavailable

1 of 3
    • ASTER II Bluetooth® for V3 GB
    • Chromatic ASTER II Bluetooth® sticker
    • PIN code sticker
    • Installation Kit
    • Doypack packaging for less waste

    There’s no need for a USB-Link or Blu-Link thanks to built-in Bluetooth® communication
