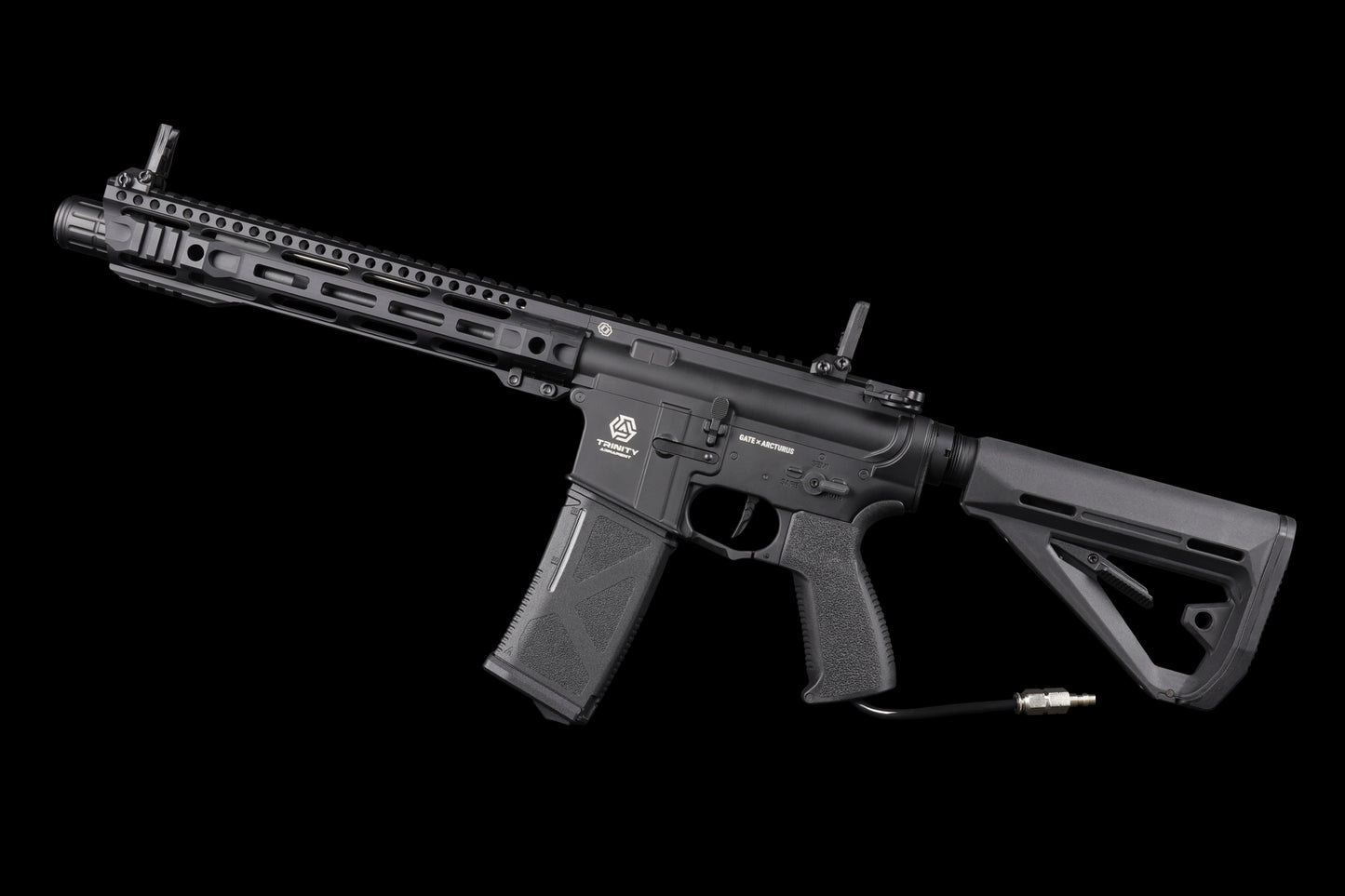

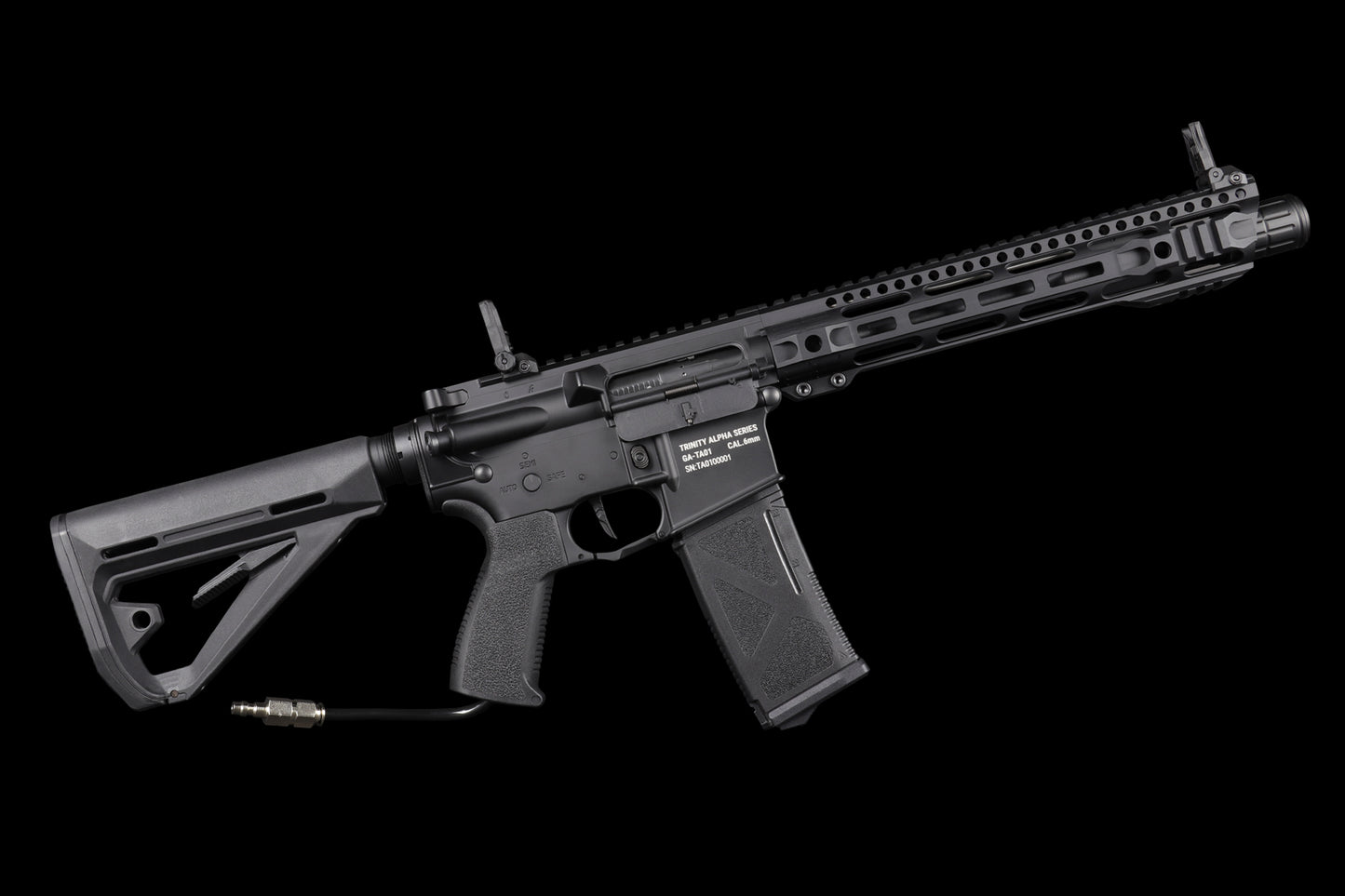

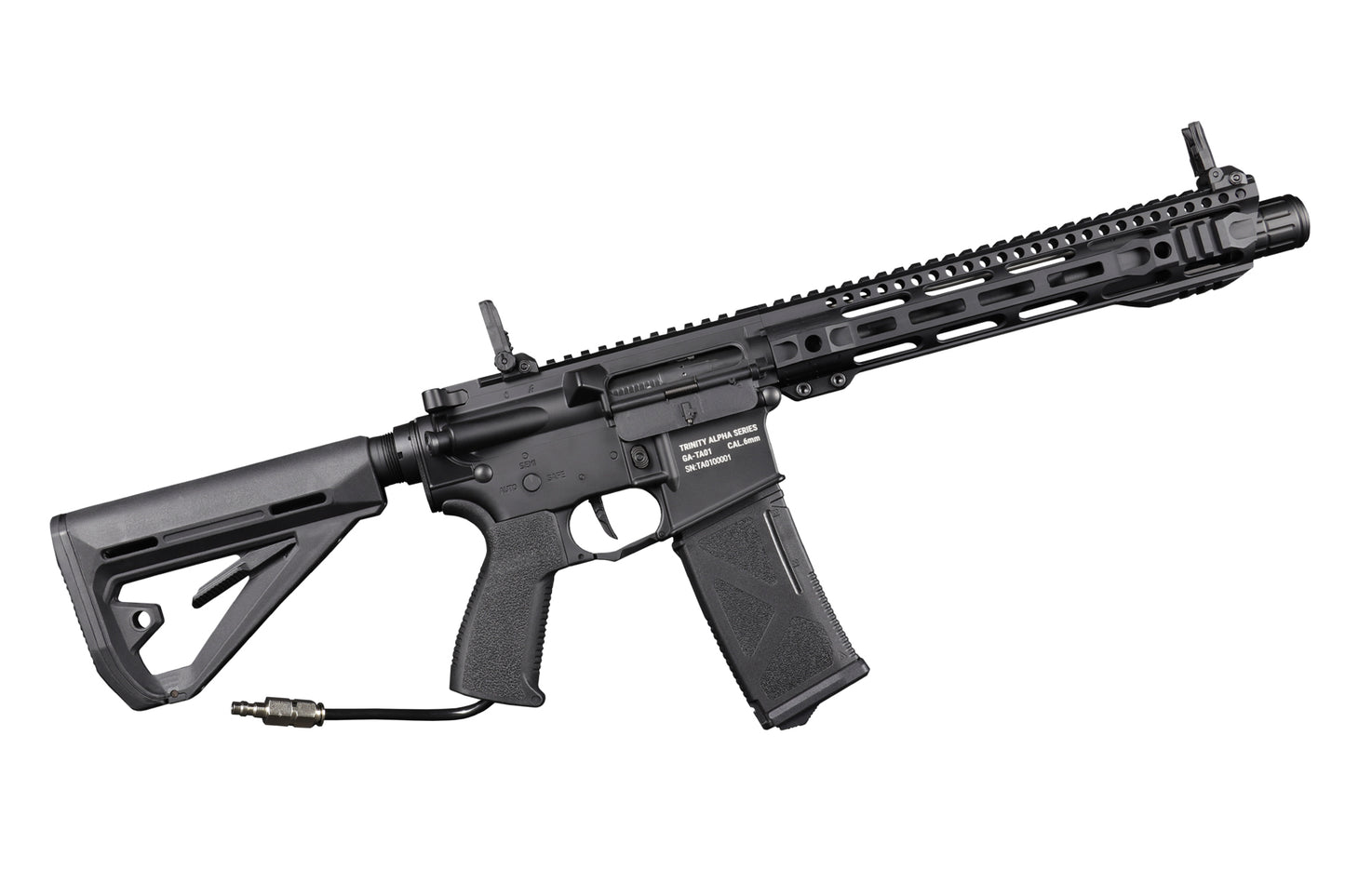

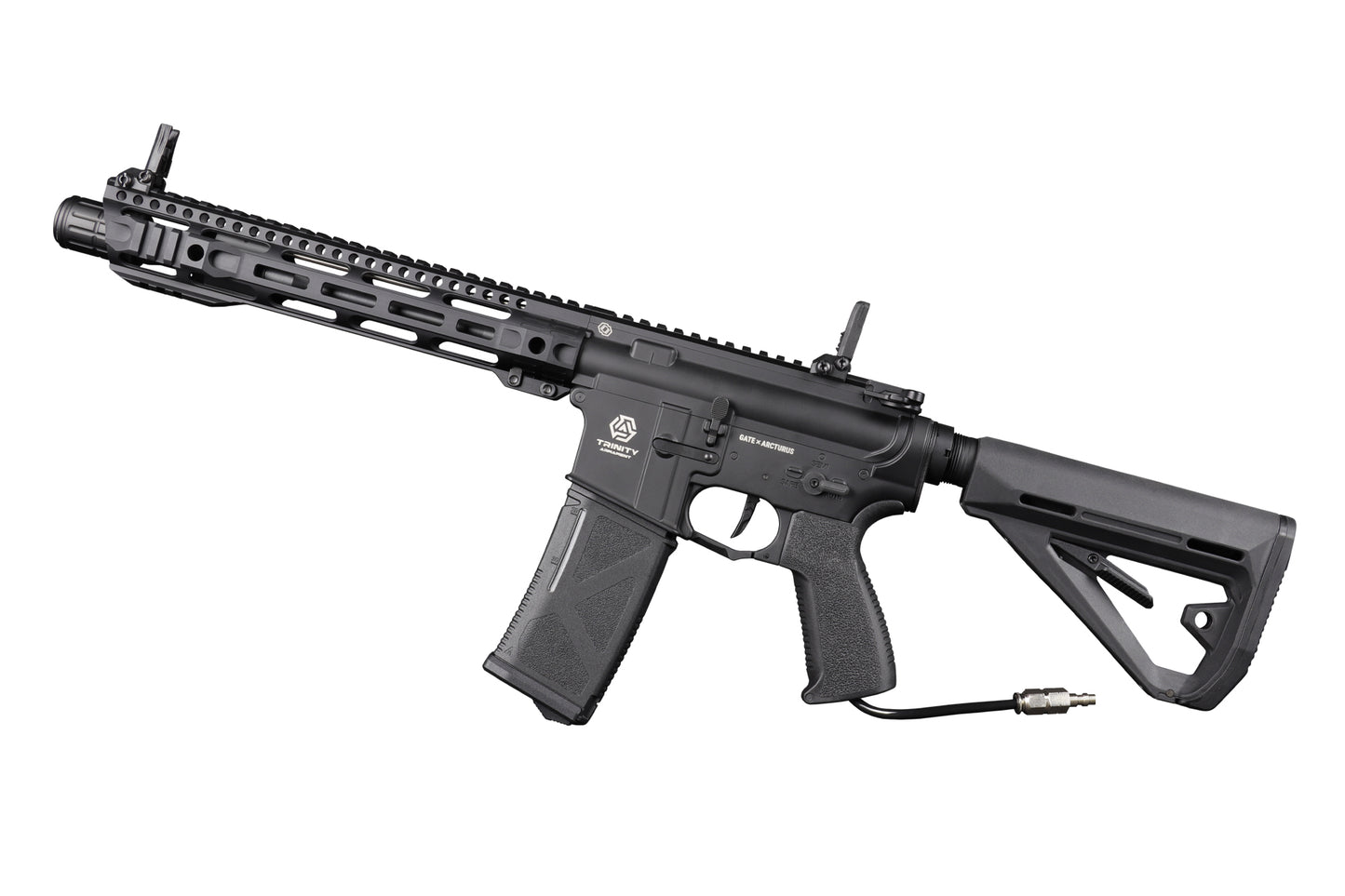

TRINITY ARMAMENT GA-TA01P HPA Training Replica with PULSAR D & TITAN II Bluetooth®

TRINITY ARMAMENT GA-TA01P HPA Training Replica with PULSAR D & TITAN II Bluetooth®

Regular price USD 830.00
Regular price USD 830.00 Sale price USD 830.00
Sale Sold out
Shipping calculated at checkout.

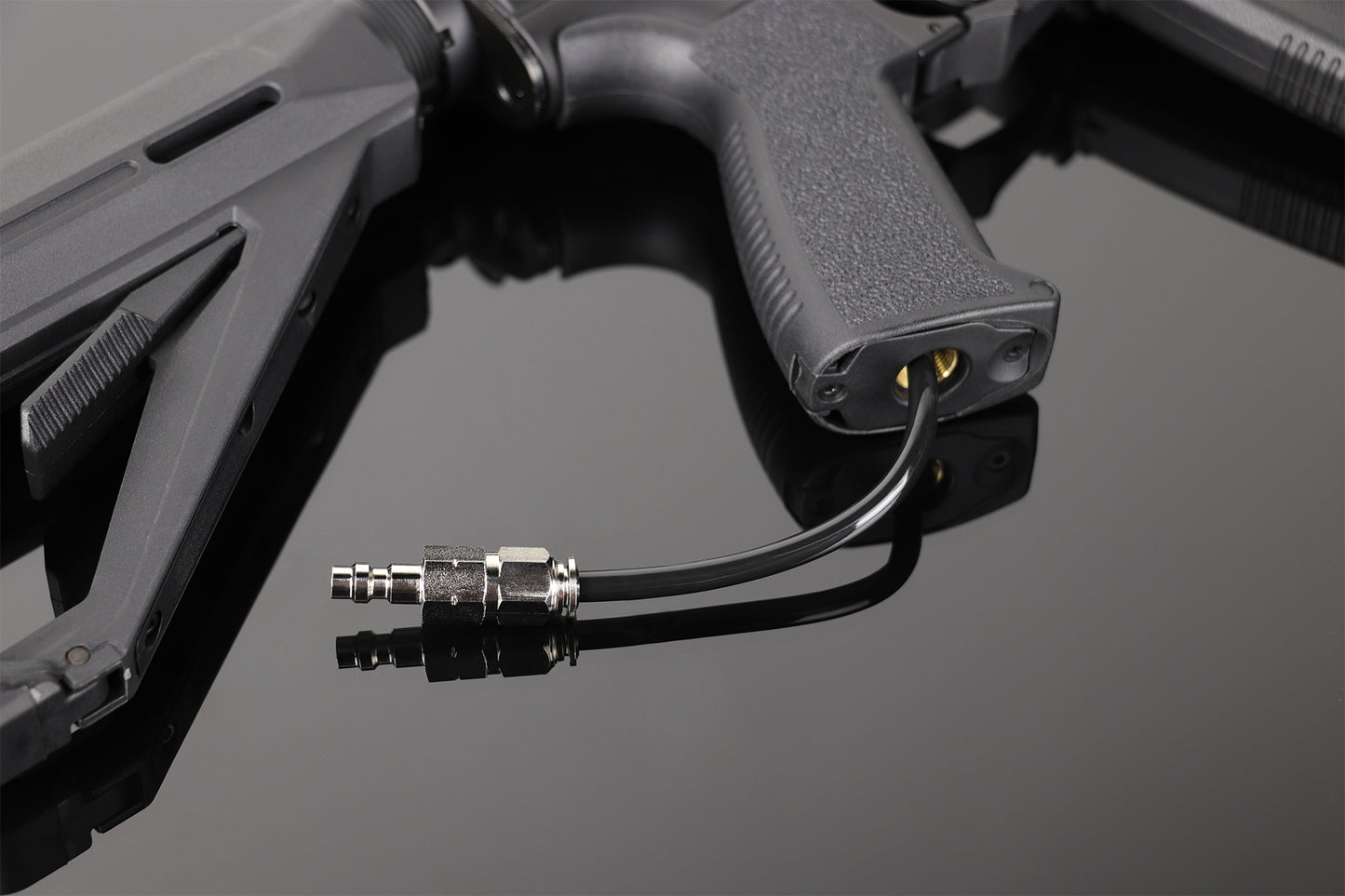

US QD fitting included

TRINITY Replicas are not available for sale to customers in the United States through GATE. If you’re from the USA, reach out to ARCTURUS Authorized Dealers

Replica Dimensions

GA-TA01 & GA-TA01P

Total length:

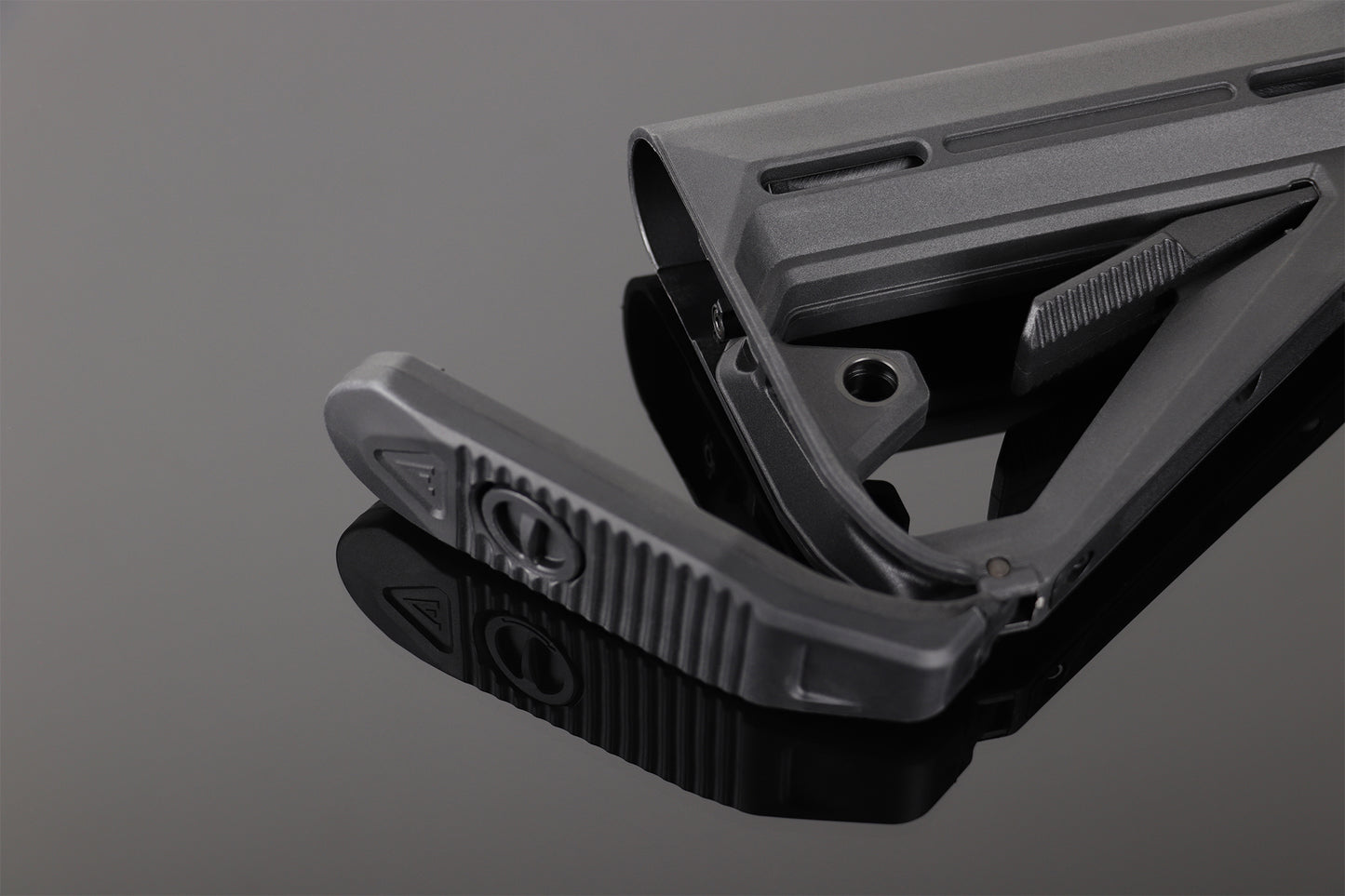

  • Buttstock fully collapsed: 72 cm
  • Buttstock fully extended: 80.5
  • Outer barrel length: 10"
  • Front length: 11.5"

GA-TA02 & GA-TA02P

Total length:

  • Buttstock fully collapsed: 82.5 cm
  • Buttstock fully extended: 91 cm
  • Outer barrel length: 14"
  • Front length: 15"

GA-TA03 & GA-TA03P

Total length:

  • Buttstock fully collapsed: 62.5 cm
  • Buttstock fully extended: 71
  • Outer barrel length: 6.5"
  • Front length: 8"

Shipping & Returns

Revision 2

  • Increased wire diameters in the TITAN II Bluetooth HPA installation for better durability
Destination Express shipping via Fedex/UPS Polish National Postal Service
 Europe 2-7 business days 1-2 weeks
Asia 2-5 business days not available
US/Canada 2-3 business days not available
Australia 3-4 business days not available



*Please note that the above delivery times may be extended due to custom duty procedure.



1. The Goods purchased in the Online Store are delivered worldwide, subject to territorial restrictions under applicable laws.
2. The Goods are delivered via specialised courier companies or Poczta Polska (the Polish national postal operator). In some cases, the Goods may be personally collected from the Seller’s registered office, and in the case of the Goods that represent digital content – they may be downloaded on an appropriate device.
3. The Goods are shipped within 1 to 3 (one to three) business days from payment booking. In some cases, the Goods can be shipped at a later date. This applies also to the Goods sold in advance (pre-sale). In such a case, the Seller shall inform the Client about a shipment date. An approximate shipment delivery date depends on a delivery method selected and a destination country, and is specified at order placement. When selecting a transfer payment option, the delivery time indicated on the Website shall be increased by time needed to credit the Client’s entire payment to the Seller’s bank account, usually 1-2 (one to two) business days. Further, in the case of countries outside the European Union, due to distance and potential customs controls the delivery time may be prolonged up to 5 weeks.
4. Detailed delivery method information is available in the Online Store in a Cart section of the given Product.
5. The Goods are shipped to an address specified in an order form or provided by phone or by e-mail. The Seller shall promptly inform the Client about the fact that an order form has been filled in incorrectly if this prevents or delays the conclusion of the Sales Agreement or the delivery of the Goods.
6. Prior to the acceptance of shipment from a postal or a courier service, packaging should be checked for any potential damage inflicted in transport. In particular, the condition of tapes or seals placed on the shipment shall be verified. If shipment package shows any signs of damage or if the seals (tapes) are removed, the shipment shall not be accepted, a damage report shall be prepared in the presence of a courier and the Seller shall be contacted as soon as possible in order to clarify the issue. If discrepancies in terms of shipment quantity or quality are not detected at the acceptance, this might adversely affect the resolution of the Client’s claims filed due to shipment damage or theft in transport.
7. In the case of the Goods that represent the firmware upgrade of devices distributed by the Seller (digital content), the Client, upon the placement of the Order, conclusion of the Sales Agreement and payment, shall connect to a GATE CONTROL STATION desktop application via a USB-Link or Blu-Link device and install the upgrade purchased.

View full details

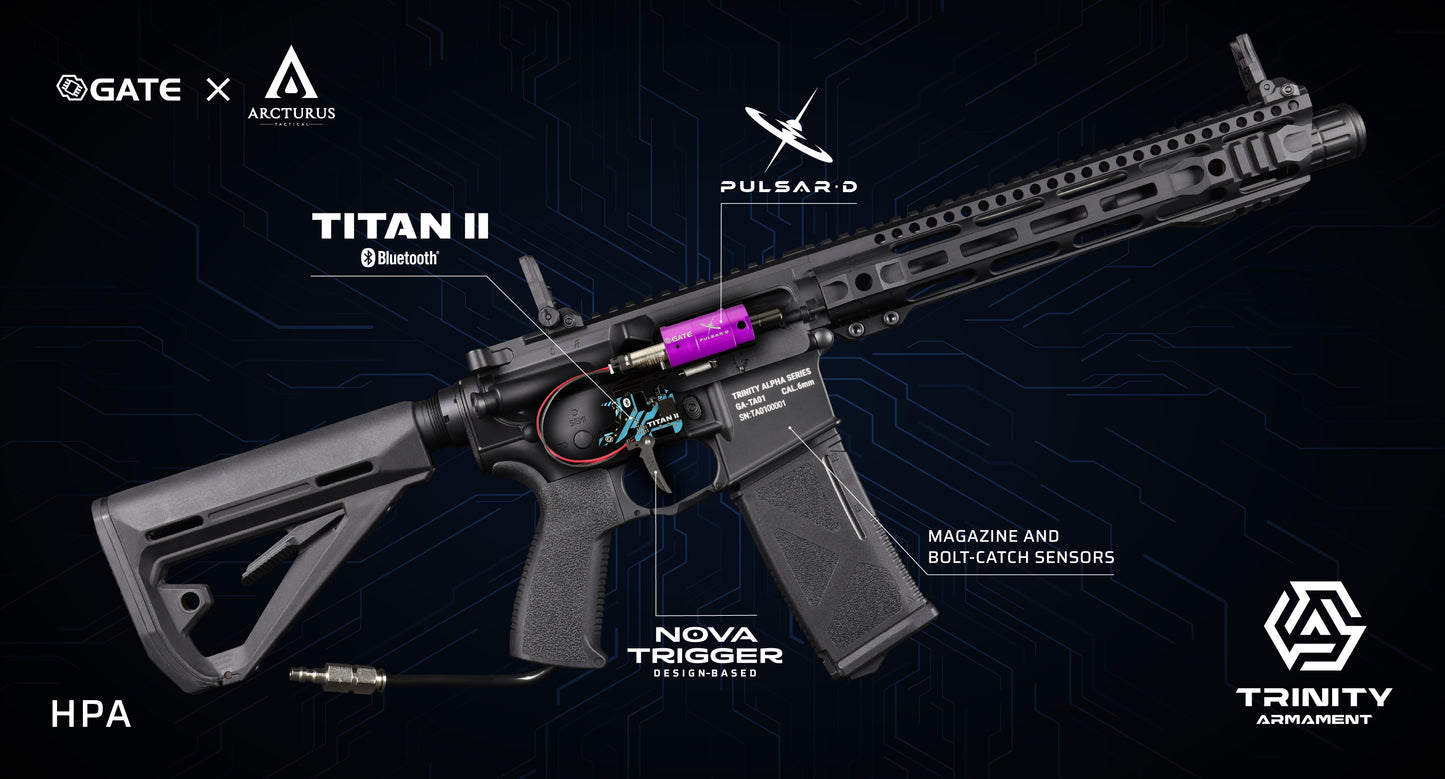

  • This is the world’s first HPA replica series straight from the factory with a pre-installed PULSAR D HPA engine. TRINITY HPA replicas are aimed at anyone with their primary focus on response time and cycle speed.Elevate your airsoft experience to new heights with our cutting-edge technology. Experience true realism with the bolt-catch feature, mirroring real life action as it detects your press of the bolt-catch button. Customize your gameplay further with adjustable magazine capacity limits, while our realistic magazine function ensures authenticity by blocking shooting when the magazine is removed. Get insane muzzle velocities ranging from 250-650 FPS & ROF from 1-40 RPS for CQB, assault, and sniper replicas. Closed-bolt and the innovative BB feed system guarantee you a straight and repeatable BB trajectory even in full AUTO – every time. Engine calibration has never been easier – PULSAR D & TITAN II Bluetooth® are introducing innovative cycle synchronization automation. The most advanced and user-friendly GCS app lets you access a multitude of settings and configurations such as binary trigger, trigger sensitivity, ROF – live via Bluetooth®. You can even use a remote trigger on your smartwatch. When you purchase the TRINITY replica, you receive a calibrated and tested system. Step into the future with the most advanced technologies available!

  • GATE ENTERPRISE and ARCTURUS TACTICAL are both community driven and dedicated to innovative product development. Under the same vision, we have teamed up to create a product that enhances the airsoft experience integrating unparalleled cutting-edge technology from GATE ENTERPRISE and reliable quality & durability from ARCTURUS. Our partnership aims to push the benchmark of training replica performance and customizability. Especially for TRINITY ARMAMENT, we have developed a new reinforced gearbox, fully compatible with the GATE Ecosystem, and perfected the replica body manufacturing technology to ensure the highest quality. Henceforth, the monumental creation of TRINITY ARMAMENT.

  • The brand new TITAN II Bluetooth® for V2 GB is the GATE flagship Electronic Trigger Unit (ETU) with built-in Bluetooth 5.2 technology gives you direct access to TITAN II Bluetooth® settings, Airsoft telemetry, and the ability to use your smartwatch, STATUS, and other future devices of the GATE Ecosystem. Engine calibration has never been easier – introducing innovative cycle synchronization automation. The mind-blowing optical trigger sensor allows you to set the hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as the bolt-catch and magazine sensors, tracer in the hop-up chamber, and more.

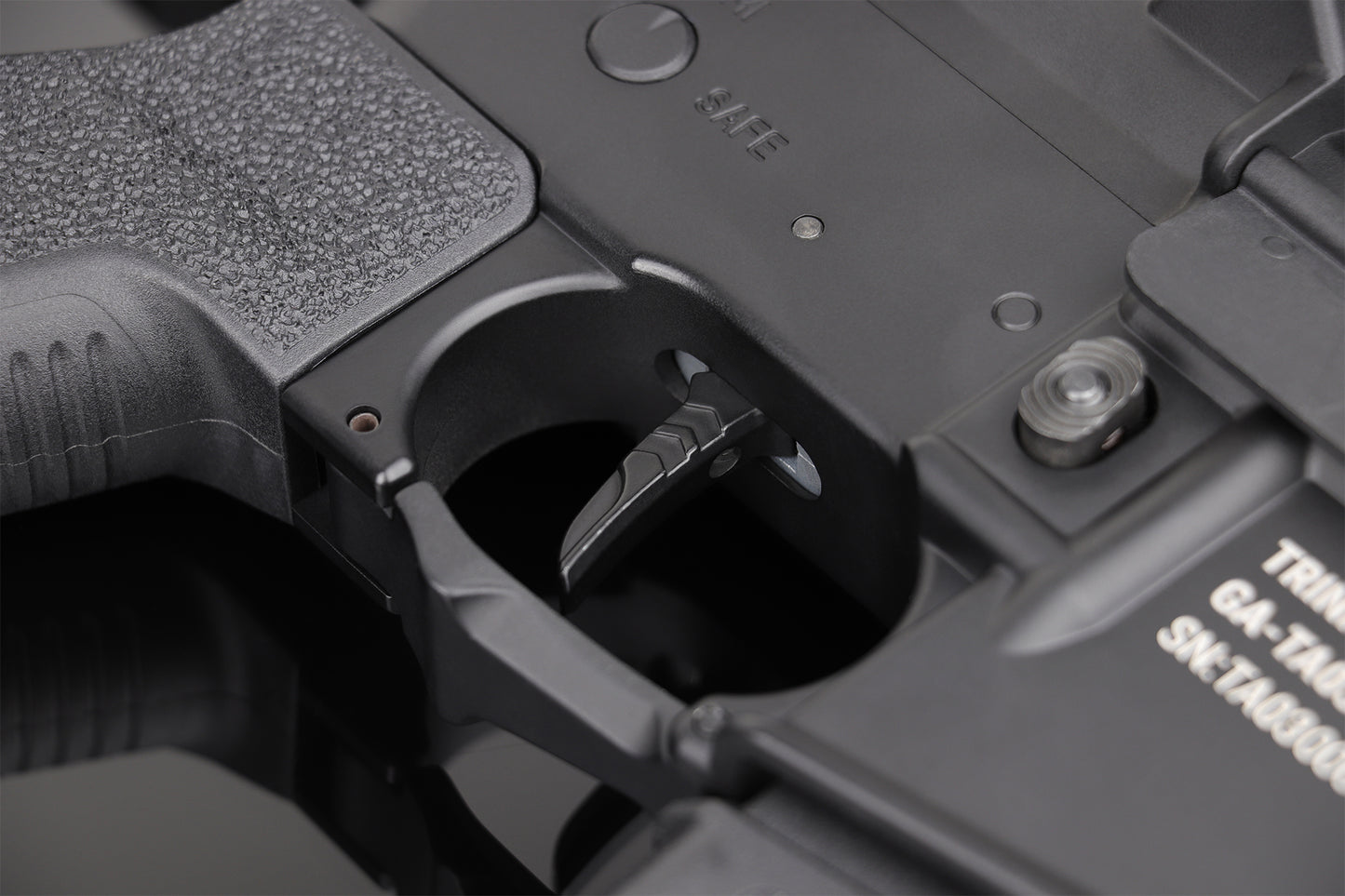

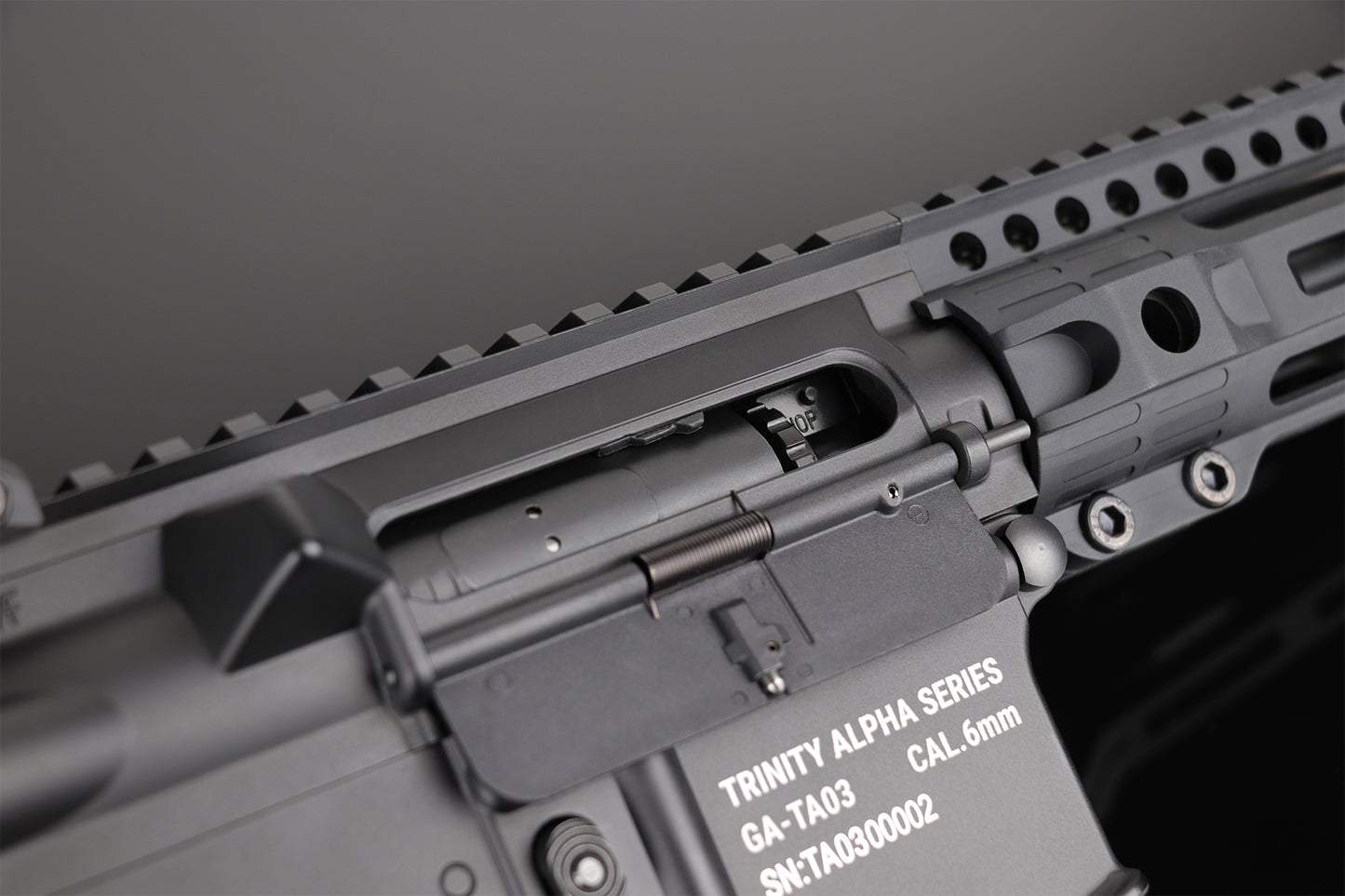

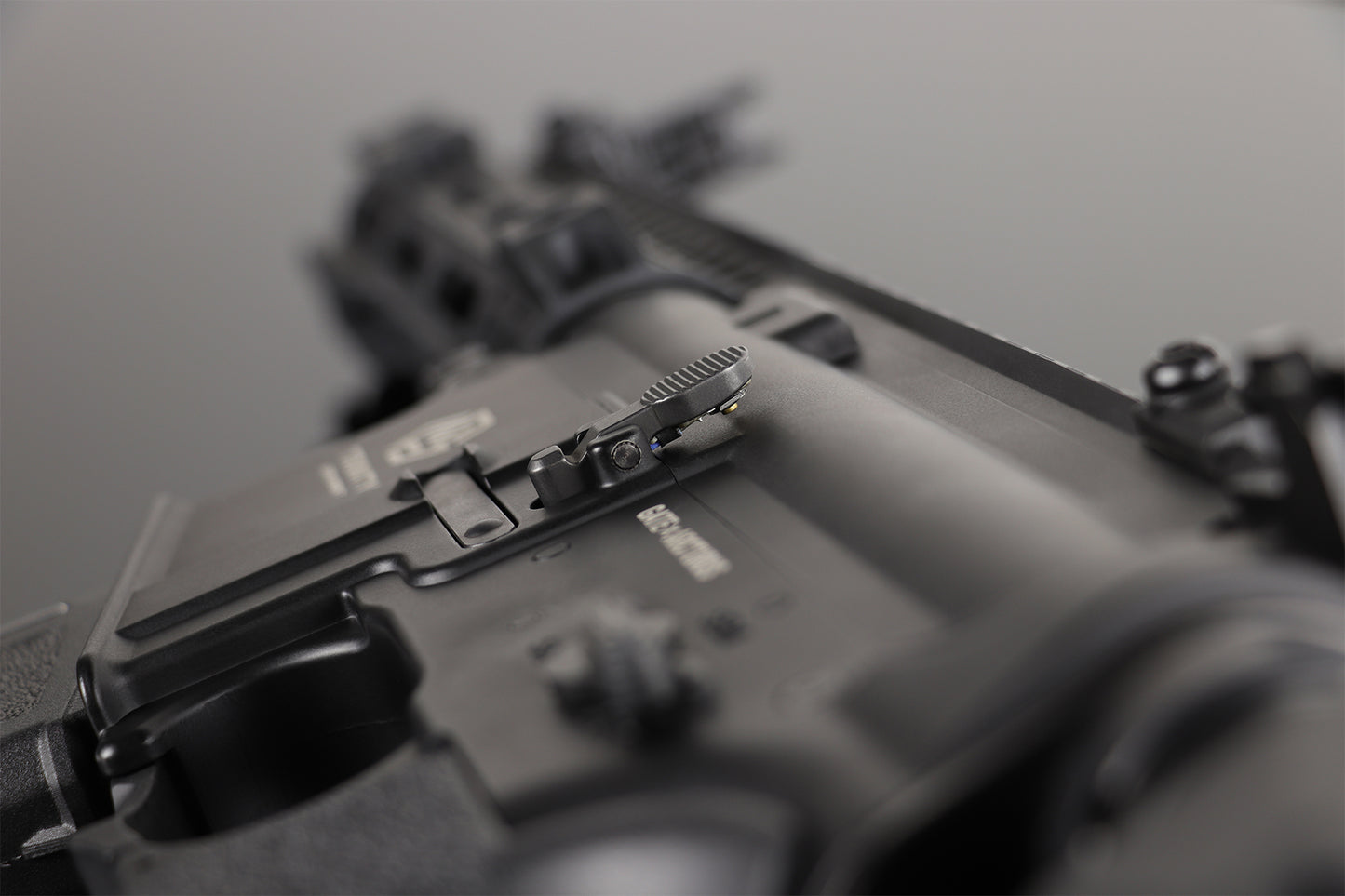

    • Realistic training platform – Electronic bolt catch release working in conjunction with a magazine sensor. This allows real capacity magazine drills for shot count simulation and training events.
    • High performance training replica using components researched and designed in-house.
    • CNC manufacturing for unparoled performance and durability.
    • Titan II Bluetooth® inside with full compatibility with the GATE Ecosystem, such as STATUS or a smart watch.
    • Simple management of the replica’s settings via smartphone and the GCS App via Bluetooth connectivity.
    • TRINITY ARMAMENT offering an advanced HPA replica that is versatile for use as a training tool or giving the player an edge in day-to-day play.

    …and many more

  • GCS App (GATE CONTROL STATION) gives you total control of your replica. It is a free universal app for configuring, controlling, and connecting the GATE Ecosystem elements such as the TITAN and ASTER Electronic Trigger Units or the tactical computer STATUS. The app is compatible with Android, iOS, Wear OS, watchOS, Windows, and macOS devices.

    Download GCS App
  • Accuracy. Versatility. Compatibility.

    PULSAR D is unrivaled thanks to the following combination:

    • Simple design
    • Innovative automatic synchronization of the nozzle movement cycle enables easier calibration – no need to fire thousands of rounds to achieve good FPS results and stable BB trajectories
    • Due to its innovative BB feed system and closed-bolt mode, it is definitely less sensitive to replica and assembly quality
    • Razor-sharp accuracy of the system – no unstable hop-up system symptom like in other HPA systems
    • Seamless integration & compatibility with the most advanced optical ETU/FCU TITAN II Bluetooth® for a synergy effect
    • High tolerances eliminating the mid-cap syndrome
    • Compatibility with any AEG nozzles
    • Zero nozzle wobble resulting in stable FPS when paired with GATE AEG nozzles, which translates into stable FPS and no mid-cap syndrome
    • No FPS drops on AUTO relative to SEMI mode at high RPS – up to 40 RPS with no FPS drops
  • PULSAR D FEATURES

    SIMPLE – Easy maintenance, thanks to a well thought-out design

    VALUE FOR MONEY State-of-the-art technology at the best price

    COMPACT – Smallest dual solenoid valve closed-bolt HPA engine with innovative cycle synchronization

    Bluetooth® ETU/FCU CONTROLLED – TITAN II Bluetooth® V2 gearbox drop-in ETU FCU mosfet AEG HPA – the first Bluetooth optical unit in an HPA replica

    • Very high resolution trigger ‎sensor – up to 50 points of sensitivity in the first millimeter
    • Bluetooth® 5.2 – connectivity to other elements of the GATE ecosystem, e.g. STATUS, smartwatch
    • For the first time in HPA replicas configurable fire modes such as BINARY TRIGGER, BURST, etc.
    • Convenient GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
    • Constant access to software updates

    AEG COMPATIBILITY – Compatible with AEG nozzles

    NO MID-CAP SYNDROME - Eliminated mid-cap syndrome thanks to high dimensional tolerance

    ACCURACY – High accuracy due to the innovative BB feed system for HPA engines

    STABILITY – FPS stability in full AUTO mode

    ACCESSORIES – Use the multifunctional port to connect accessories such as the bolt-catch button, magazine sensor, tracer in the hop-Up chamber, electric magazine power supply

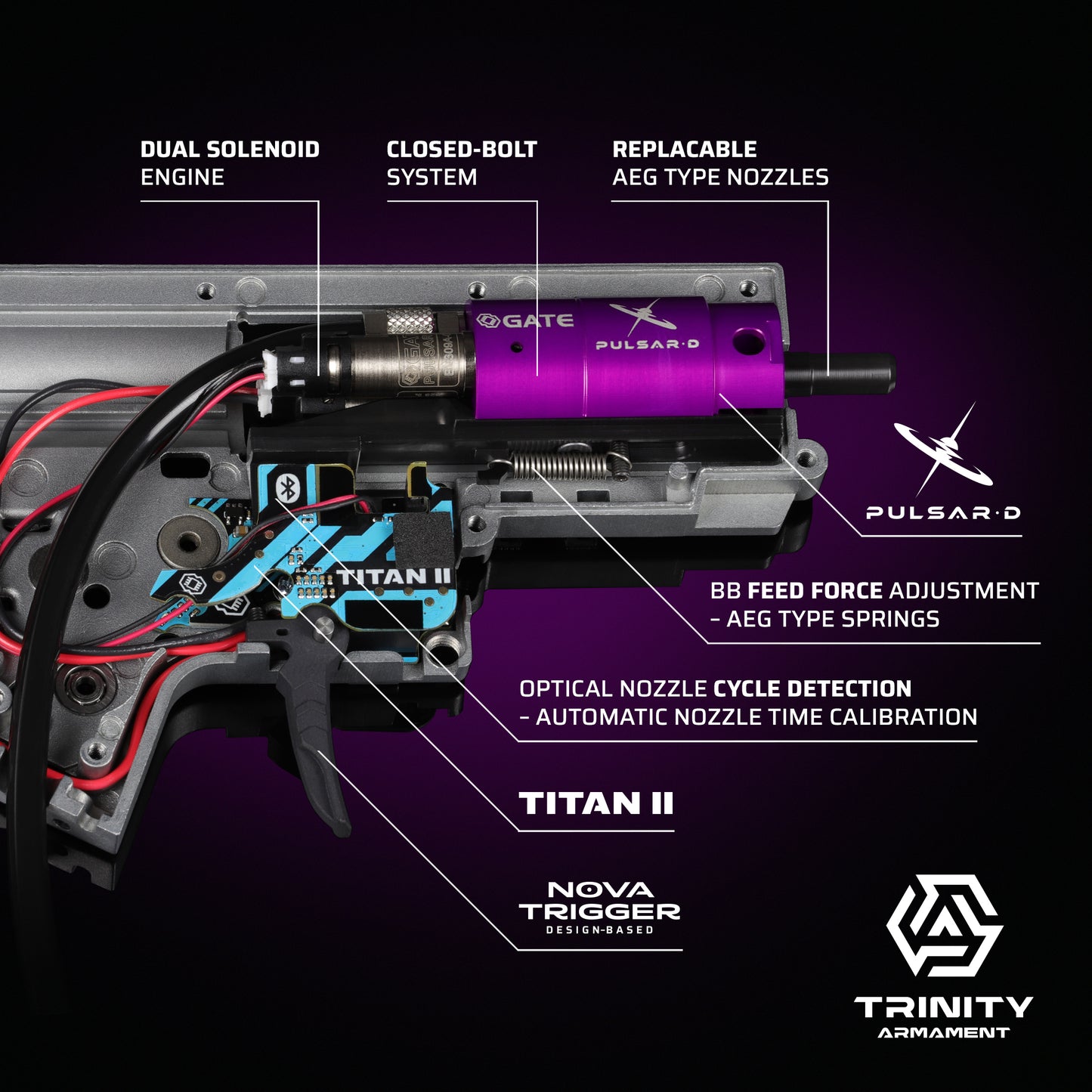

  • PULSAR D – DUAL HPA SOLENOID ENGINE

    The design and production of the device is based on harmonized standards.

    Solenoid Voltage Range

    5-8.4 V

    Operating Pressure

    60-140 PSI – high pressure only

    Gas Consumption

    For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 0.7 PSI per shot

    Dimensions with innovative cycle synchronization automation (Length x Diameter x Height)

    102 mm x 25.4 mm x 38.5 mm

    Dimensions (Length x Diameter x Height)

    100 mm x 25.4 mm x 32 mm

    Finished Product Weight

    90 g

    Operating Temperature Range

    min. -15° C, max. +50° C

    Relative Humidity

    ≤ 80%

    Regulated ROF

    1 to 40 RPS (BB feed correctness depends on magazine)

    Velocity

    250 – 650 FPS

    Operation Mode

    Closed-Bolt / Open-Bolt

    Pressure Range

    60 do 140 PSI

  • TITAN II Bluetooth®

    Supply Voltage Range

    5-8.6 VDC

    Rated Current

    10 A

    Current Consumption

    27 mA

    Low Power Mode

    100 µA

    Connectivity

    Bluetooth® 5.2 Low Energy

    Dimensions (Length x Width x Thickness)

    47.2 mm x 28.9 mm x 14.5 mm

    Finished Product Weight

    28.2 g

    Operating Temperature Range

    min. -15° C, max. +50° C

    Relative Humidity

    ≤ 80%

    Read more about TITAN II Bluetooth®
  • GCS APP

    PULSAR D with TITAN II Bluetooth® and GCS App gives you total control of your replica.

    The GCS offers you the option to:

    • Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS

    • Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win

    • No more surprises with an empty magazine or a discharged battery

    • Easily adjust the TITAN II Bluetooth® settings during the game

    • Update and upgrade firmware

    • View the BB counters, electrical measurements, and statistics

    • Perform diagnostics and send reports

    • Get the latest news from GATE Enterprise

    Download GCS App

TITAN II Bluetooth® Features

SELECTOR MODES

Two selector sensors allow you to take advantage of hundreds of selector mode variations, depending on firmware edition. The following modes are available for selection*:

SAFE – prevents your replica from firing, even if the safety lever is removed

SEMI – allows you to fire one shot per one trigger pull

BINARY – allows for firing one shot on the trigger pull and another shot upon release

BURST – enables you to shoot a predetermined number of BBs, which is very useful in MilSims and when using low-caps; there are 2 BURST Modes available:

  • Full – a burst is shot in full, even if the trigger is released before the preset number of BBs has been shot
  • Interruptible – the burst can be interrupted by releasing the trigger earlier - when the trigger is released, the shooting stops even if not all the BBs from the burst have been shot

BURST/AUTO – available in Full BURST Mode only; allows for extending a burst by any number of shots – if you hold the trigger after the burst is shot, it switches to AUTO Mode

AUTO – shots are fired as long as the trigger is pulled

SEMI RAMPING – if you pull the trigger very fast, it switches to AUTO Mode

*You can check selector configuration possibilities provided by particular Firmware Editions here

Please note: In the case of Regional Lock, only SEMI Mode is available. Check law restrictions in your country.

2-STAGE TRIGGER

Enables you to set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire. Pulling it further produces BURST or AUTO fire. Select your sensitivity preferences for each stage.

PRE-COCKING

Victory in the game is often a matter of fractions of seconds. Thanks to pre-cocking, you gain trigger reaction similar to real life. This allows for initial spring compression, which speeds up trigger response significantly.

There are two Pre-Cocking Modes:

  1. AUTO Mode – the spring is automatically compressed after each shot—you choose the level of pre-cocking from the list (percentages or levels)
  2. MANUAL Mode – set the pre-cocking values yourself—instead of percentages there are time settings, you have to choose the time for yourself by trial and error

*Now Pre-Cocking is fully operational in SEMI, BURST, and AUTO Modes

Please note: using Pre-Cocking increases wear and tear on the gearbox.

MAGAZINE

This feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap. Then, after a predetermined number of BBs is shot, you will have to wait for a previously defined amount of time before the next shot can be fired as if you were really replacing an empty magazine with a full one. In the case of ADVANCED and EXPERT Firmware, you can also set Low Ammo Warning.

SERIES SAFETY LIMIT

Enables to set a predefined number of BBs fired in a single series. It can be used as protection against trigger jams. In case of emergency, you can stop the series by switching the selector position.

SNIPER DELAY

It lets you set the delay between shots or series to simulate the delay from reload or recoil. You can setthe delay to 0.2 s0.5 s1 s2 s or 3 s for ADVANCED firmware and 0.01-5 s for EXPERT firmware.

ROF CONTROL

ROF Control enables the reduction of a replica’s rate of fire. You can use stronger batteries and still have the ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM.

Adaptive – set your desired rate of fire; the brake and delay will be automatically adjusted to achieve this value

Manual PWM – set the motor power throughout the duration of the shot

Manual Delay – set the exact delay between shots in milliseconds

Manual Delay + PWM – set braking power and delay manually

SMART TRIGGER

We know how vital fast trigger response during combat is. That's why we've developed the Smart Trigger function, which enables you to achieve faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF and subsequent shots at a reduced ROF. The best results can be achieved when using a battery with above standard voltage. For example, if you’re using a 7.4 V battery, you can replace it with a 11.1 V one. This way, you will achieve faster trigger response with the same rate of fire than with a standard battery.

BATTERY PROTECTION & WARNINGS

Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically.

ACTIVE BRAKE

Thanks to the gear sensor, TITAN precisely detects where the cycle finishes. So, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, making it possible to use a broad range of gears: DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually.

EQUALIZER

You don't need to fully release the trigger to fire the next shot. This option is really useful when the trigger sensitivity level is very high. Choose between two types of equalizer.

  • OFF - to fire the next shot, you need to release the trigger until it reaches the selected trigger sensitivity level.
  • 2LVL - to fire the next shot, just release the trigger until it moves over two adjoining sensors.
  • 1LVL - to fire the next shot, just release the trigger until it moves over an adjoining sensor.

CYCLE DETECTION

Thanks to the gear sensor, TITAN II Bluetooth® precisely detects where the cycle finishes. So, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, making it possible to use a broad range of gears: DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually.

Thanks to the cycle detection function you get:

AUTOMATIC BURST

You don't need to set the burst time—you can set the burst between 2 and 10 shots

AUTOMATIC Pre-Cocking

Pre-Cocking is fully operational in SEMI, BURST, and AUTO modes and there's no need to set the Pre-Cocking boost manually; you can simply set Pre-Cocking as high, mid or low

FULL CYCLE

When Pre-Cocking is off, TITAN II Bluetooth® ensures that the gearbox completes a full cycle and you gain more reliability

DIAGNOSTICS

This feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App.

BUILT-IN SELF-TEST

This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.

COATING

Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).

    • Power supply cable (GEL BLASTER/Electric Magazine/Tracer)

    • Single solenoid HPA cable

    • Dual solenoid HPA cables

    • Divider ready for connecting many accessories (you can connect 1x power supply cable and 2x I/O cable)

    • Universal I/O cable for max. 2 DIY accessories (bolt catch & magazine sensors)

    • Bolt Catch with button and cable (ready to connect)

    • Magazine sensor with cable (ready to connect)

    PULSAR Accessories
  • TITAN

    Transform your AEG into a computerized training system and gain a unique tactical advantage thanks to extremely fast trigger response—just like in real life.

  • ASTER

    The younger brother of the well-known TITAN. Designed to achieve maximum reliability at an attractive price and destined for most AEGs. ASTER is destined for most builds.

  • STATUS

    Get data in real-time directly from the STATUS screen to reinforce your tactical decisions. No more surprises with an empty magazine or a discharged battery.

  • GCS APP

    GATE Control Station is a free universal app for configuring, controlling, and connecting the GATE Ecosystem elements such as the TITAN, ASTER and STATUS.

  • VIRTUAL STATUS SMARTPHONE

    Virtual STATUS functions in your smartphone. No more surprises with an empty magazine or battery.

  • VIRTUAL STATUS SMARTWATCH

    GCS App provides essential STATUS functionalities such as the BB counter, magazine counter, and the remaining shots on the battery.

  • BLU-LINK

    Blu-Link allows for wireless management of your GATE ETU via the GCS App. You can use an iPhone, Android smartphone or a computer to control your replica with Bluetooth® 5.0.

  • USB-LINK

    The USB-Link dongle is used for connecting GATE ETUs with PC, Mac, and Android devices. Working in tandem with the GCS App gives you full access to functions and settings.

PULSAR D Accessories
